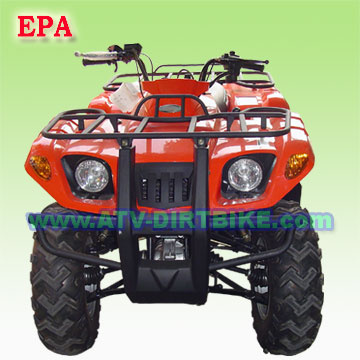

Home Wenling Leeway Import and Export Co., Ltd. EPA & EEC ATV 400(4X4)
Specifications
| Prod Model: | ATV 400(4X4) |
|---|
Product Description
Size 2100 x 1125 x 1175Wheelbase 1240
Seat Height 860
Ground Clearance 210
Min. Turn radius 3175
Fuel Capacity 14
Tyres/Front AT25 x 8-12/22 Kpa
Tyres/Rear AT25 x 10-12/25 KPa
Suspensions Front/Rear Independent double-wishbone front suspension /rear centering shock absorbing
Brakes Front Plate brake/right hand operation
Brakes Rear Drum brake/foot or left hand operation
Dry Weight 270
Max. Loading 210
Brake distance ≤ 8m/30km/h
Maximum speed ≥ 75km/h
Max. Angle >25degree
Engine type single-cylinder, Air-cooled, 4-stroke,
Engine model JS183FMQ
BoreX Stroke 83 X71. 6
Displacement 387. 4
Compression Ratio 8. 7: 1
Carburetor Plug
Fuel consumption 4. 5L/100km
Rated power 16Kw (6500r/min)
Max. Power 17Kw (6500r/min)
Max. Torque 26N. M (5000r/min)
Idle speed 1500 +-500 r/min
Transmission type Axle
Ignition CDI
Starter Electric starter or hand-pulled recoil starter
Shift type 5 speed forward / 1 reverse
Primary ratio 3. 167
Middle transmission ratio 3. 333/1. 889/1. 364/0. 962/0. 704, reverse 3. 020
Final ratio 5. 704
Clutch Wet centrifugal Automatic
Gasoline RQ-90 GB17930-1999
Engine Lubricant AE20W40
Transmission Lubricant SAE20W40, SAE10W30, SAE5W30
Lubricant Oil capacity E/G: 3L TRANS: 0. 25L
Lubricant Press/Splash
Spark plug D8REA
Battery type 12V 20Ah
Headlamp 12V 35W 35W x 2
Tail light 12V 21W /5W
Turn light 12V 10W* 4
Package dimension 2180 x 1150 x 870 40HC--30
RED, BLACK, GREEN, BLUE, CAMOUFLAGE YELLOW, ARMY GREEN
QTY/Container: 10units/20'; 30units/40HQ
