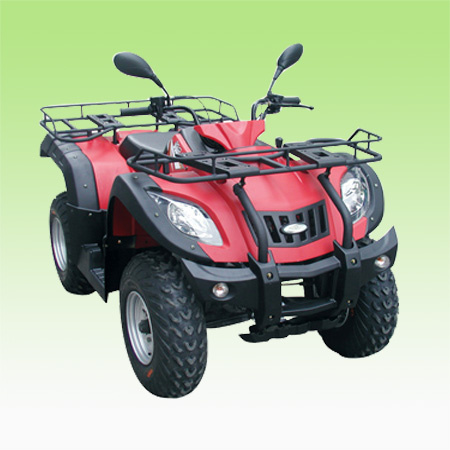

ATV (PUMA 250-5) with EEC & COC, EPA Approvals
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 10/Piece |
Specifications
| Prod Model: | PUMA 250-5 |
|---|
Product Description
Size (LXWXH) 1960 x 1010 x 1120Wheelbase 1160
Seat Height 780
Ground Clearance 155
Dmin Turning 2900
Fuel Capacity (l) 12L
Wheels Front/rear Vacuum
Types Front AT22 x 7-10/20kPA
Types Rear AT22 x 10-10/25Kpa
Suspensions Front/Rear suspension rod/rotary rod
Brakes Front disk brake/right hand operation
Brakes Rear drum brake/foot operation and left hand operation
Dry Weight 220kg
Max. Loading 165kg
Brake distance 7m/30km/h
Min fuel 2. 5L/100km
Maximum speed 65 km/h
Max angle >=25
Engine type Single-cylinderAir-cooled, 4-stroke,
Engine model JS171FMM-3/JIANSHE
Bore x Stroke 71 x 58
Displacement 229. 6cm3
Compression Ratio 8. 7: 1
Carburetor Vacuum film piece type
Rated power 10. 0kw(7000r/min)
Max. Torque 15. 0N. M(5500r/min)
Ignition CDI
Starter Hand pulled recoil starter/electric starter
Shift type 5 speed front driving and 1 speed reverse driving
Transmission ratio 2. 838/1. 789/1. 318/1. 040/0. 821 and 41. 5
Transmission type Axle/Shaft
Clutch Wet automatic centrifugal clutch
Gasoline RQ-90 GB17930-2000
Engine Lubricant -25C~0C SE 15W/30 GB11121
-10C~35C SE 10W/30 GB11121
15C~45C SE 15W/40 GB11121
Rear transmission gear box Lubricant SAE 80 API GL
Lubrication Oil capacity of engine 1. 8L
Lubrication Press/Splash
Spark plug D7RTC
Battery type 12V 14Ah
RED, BLACK, GREEN, BLUE, CAMOUFLAGE YELLOW, ARMY GREEN
QTY/Container: 12units/20'; 36units/40HQ
