Specifications
Prod Model: |
JMUTV150 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Optional |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
ISO9001 |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
150CC |
Structure: |
Two Side Doors |
Maximum Speed: |
50-75 km/h |
Brake Type: |
Disc Brake |
Condition: |
New |
Power: |
>1000W |
Brand: |
Junma |

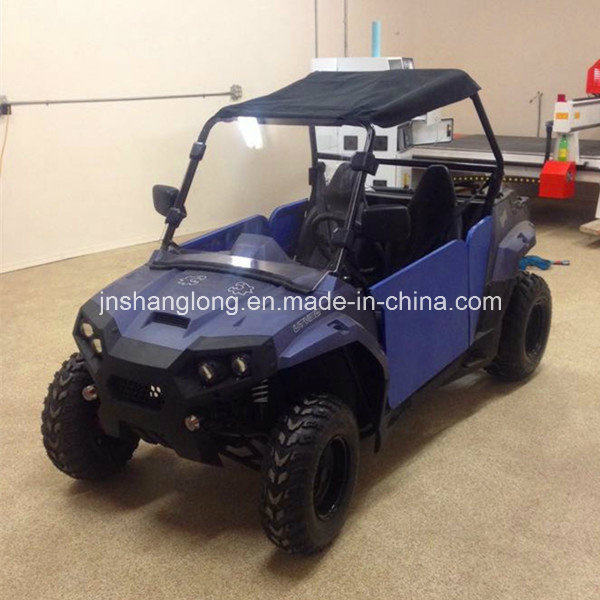

Product Description
Jinan Shanglong International Trade Co., Ltd. is located in Jinan, China. Our company specializes in exporting ATV, UTV, motorcycle and electric vehicle.
Since the establishment of our company in 2003, we have devoted a significant amount of time and energy to research and develop products. Until now, we have got the certification of EEC, EPA, DOT, etc.
In production, we perform strict standards to make sure that no unqualified products flow into the public market.We always pursue consumerism as our basic rule of servicing customers.Our products are attracting more and more customers by new style and high quality.
Our company insists on the theory of "To persist in quality;To develop with sincerity". We are constantly looking for opportunities to build new business relationships with companies from all over the world. If you are
interested in any of our products, please do not hesitate to contact us. Our qualified staff will do their utmost to supply you with first-class products and service.
Product Specification |
Item | Specification |
Engine type | Single cylinder, 4-stroke, CVT |
Displacement | 149.6CC |
Bore x stroke | 57.4mmX57.8mm (22.6X22.8 inches) |
Compression ratio | 9.5:1 |
Ignition | CDI |
Cooling system | Air/Oil cooled |
Starting system | Electric starting |
Vehicle dimension | 2435mm x 1290mm x 1397mm (958.7X507.9X550.0 inches) |
Cargo bed | 410mm x 852mm x 220mm (161.4X335.4X86.6 inches) |
Wheelbase | 1800mm (708.7 inches) |
Front tread | 1020mm (401.6 inches) |
Rear tread | 965mm (379.9 inches) |
Ground clearance | 152mm (59.8 inches) |
Seat height | 500mm (196.9 inches) |
Dry weight | 245kg |
Gross weight | 295kg |
Maximum rider weight | 68kg(each rider) |
Fuel capacity | 9.5L |
Cargo bed load capability | 150kg |
Towing capability | 2000lb |
Final Drive | Chain drive |
Drive type | 4x2 |
Shift type | F/N/R |
Brake system front/rear | Foot Activated,4-wheel hydraulic disc |
Suspension | F:Single A-arm; R: dual shock swing arm |
Steering | Gear box |
Wheel rim | 10 inches |
Tire | Front: 22X10-10; Rear: 21X7-10 |
Top speed | 60km/h |
Packing Size | 2290mmx1300mmx855mm (901.6X511.8X336.6 inches) |
Waterproof | 0.2m |
Max climbing gradient | 15° |
Min opernation temperature | -20°C |
Max opernation temperature | 40°C |
Max torque and rotate speed | 9.8N.m(4000r/min) |
Rated power and rotate speed | 6.8kw(5500r/min) |
Gas consumption/100km | 4.5L |
