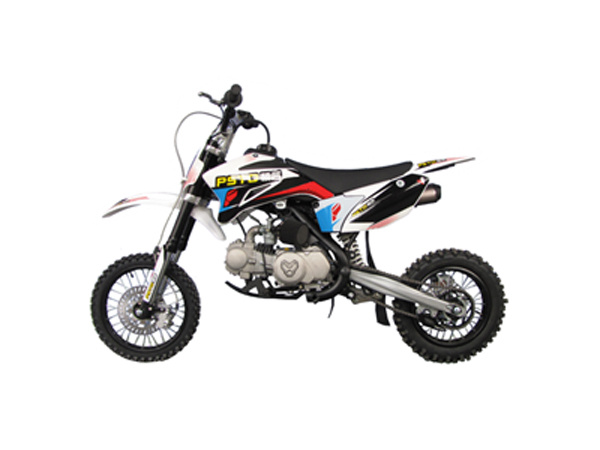

Prod Model: |
PSTO TL125 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Cylinder Quantity: |
1 |
Fuel: |
Gas / Diesel |
Condition: |
New |
Starting System: |
Kick System |
Engine: |
4 Stroke |
Displacement: |
51-125CC |
Product Description
ENGINE 4-stroke
DISPLACEMENT 120CC
BORE/STROKE 52.5mm x 57mm
COMPRESSION RATIO 9.0: 1
STARTER kick
TRANSMISSION 4 Speed semi Auto
CARBURETOR 22mm
COOLING Air Cooling
CLUTCH 5 plate wet clutch
GEARING 420/15TX39T
Motorcross
CHASSIS
FRAME High Tensil steel specially shaped for pit bike
SUBFRAME Removable
HANDLEBAR Chromoly, low profile, 700mm length
FRONT SUSPENSION 735mm length, 33mm inverted fork, Non adjustable
REAR SUSPENSION 350mm length, 320lbs
SUSPENSION TRAVEL FRONT/REAR 190mm Front/ 52mm Rear
FRONT /REAR BRAKES 210mm front/190mm rear round-style
Rotor W/ Floating Caliper
FRONT/REAR RIMS Steel, 1.40 x 14"/1.85 x 12"
FRONT/REAR TIRES 2.50 x 14"/3.0 x 12"
SWINGARM Needle bearings, "D" shape steel with linkage
WHEELBASE 1240mm
GROUND CLEARANCE 290mm
SEAT HEIGHT 825mm
FUEL TANK CONTENTS 3.80L
CURB WEIGHT 75kg
Overall Length: 1720mm
Overall Width: 750mm
Since 2001, the shuopu technological team has thrown themselves into domestic and international motorcycle field. The core members of our team have achieved high level and good understanding of motorcycle culture. We play an important role in the designing and producing of pitsterpro brand pitbikes. The shuopu technological team has set many precedents in China's motorcycle industry. This is the first team which makes made-in-China pitbikes being shown in milan fair, Italy, the birthplace of motorcycle, and still is the first one which makes made-in-China pitbikes win the international race position. In July, 2005, shuopu science and technology development Co., Ltd. has been formally founded in jiangmen, China. It is a motorcycle designer and manufacturer specializing in pitbikes, ATV and spare parts. We keep on cooperation through ODM mode with pitsterpro. On the basis of long time good international partner relationships and acute insight into the market, we push many new models of bikes into international market every year. At the same time, we are gradually enriching our products' series. We have entered or will enter the fields of alloy precision machining, aviation parts producing and special type of engine. In 2007, shuopu transferred to the new plant, a much bigger and better working place, that increase our production power to 20, 000 bikes per year. By the end of 2008, company's fixed asset is over 10 million RMB, and annual production value is over 100 million RMB. Shuopu has gained certificate of ISO 9001 and wmi number, and is always on the way to a more and more standardized and professional corporate. With efforts, shuopu is getting stronger and stronger. We are sincerely looking forward to working together with you to build a prosperous future.
