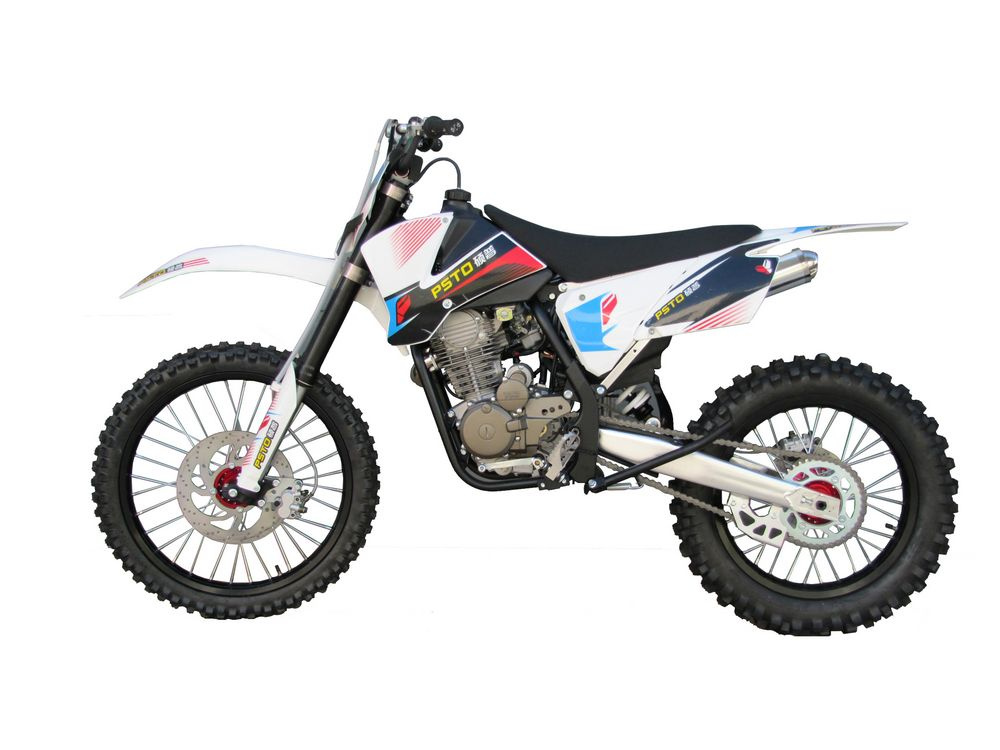

XTR 250CC off Road Bike

XTR 250CC off Road Bike
Price: Negotiable
Min Order: 1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Starting System: Kick Start and Electric Start
Engine: 4 Stroke
Displacement: 126-250CC

Product Description

XTR 250CC off Road Bike
  PART NAME DESCRIPTION
ENGINE
Type Single cylinder, 4-stroke
Displacement 223cc
Bore × Stroke 65.5mm x 66.2mm
Compression Ratio 9.0: 1
MAX POWER(Kw/r/min) 12.8Kw/9000r/min
MAX. TORQUE(N. m/r/min 18N. m/7500r/min
IGNITION CDI
STARTER Electric/kick start
TRANSMISSION Chain drive/International 5 gears
Carburetor 30mm
Cooling Air Cooled
Clutch Method 5 plate wet clutch
Gearing 428
PRIMARY RATIO 3.333
FINAL DRIVE 3.154

CHASSIS
FRAME   Completely shrouded high tensile steel tube
  SUBFRAME   Removable
  HANDLEBAR Aluminum diameter22mm  Fat bar alloy
Front Suspension   diameter41× 840mm inverted front fork, adjustable
Rear Suspension Adjustble, with air bag
SUSPENSION TRAVEL FRONT/REAR 250 mm Front /110 mm Rear
  FRONT /REAR BRAKES   280mm front/ 220mm rear round      Rotor / Floating Caliper
  FRONT/REAR RIMS   Alloy, " 1.85× 21" Front; " 2.15× 18" Rear
  FRONT/REAR TIRES   3.00-21" Front; 4.60-18' Rear
  SWINGARM   Alloy Pro Style
  WHEELBASE   1410mm
  GROUND CLEARANCE    350mm
  SEAT HEIGHT   940mm
Tank Capacity 5.1L
CURB WEIGHT 107kg
  Overall Length: 2020mm
  Overall Width: 810mm
Max. Speed 100km/h
Packing  Steel frame, carton box, Single Packing
Since 2001, the shuopu technological team has thrown themselves into domestic and international motorcycle field. The core members of our team have achieved high level and good understanding of motorcycle culture. We play an important role in the designing and producing of pitsterpro brand pitbikes. The shuopu technological team has set many precedents in China's motorcycle industry. This is the first team which makes made-in-China pitbikes being shown in milan fair, Italy, the birthplace of motorcycle, and still is the first one which makes made-in-China pitbikes win the international race position. In July, 2005, shuopu science and technology development Co., Ltd. has been formally founded in jiangmen, China. It is a motorcycle designer and manufacturer specializing in pitbikes, ATV and spare parts. We keep on cooperation through ODM mode with pitsterpro. On the basis of long time good international partner relationships and acute insight into the market, we push many new models of bikes into international market every year. At the same time, we are gradually enriching our products' series. We have entered or will enter the fields of alloy precision machining, aviation parts producing and special type of engine. In 2007, shuopu transferred to the new plant, a much bigger and better working place, that increase our production power to 20, 000 bikes per year. By the end of 2008, company's fixed asset is over 10 million RMB, and annual production value is over 100 million RMB. Shuopu has gained certificate of ISO 9001 and wmi number, and is always on the way to a more and more standardized and professional corporate. With efforts, shuopu is getting stronger and stronger. We are sincerely looking forward to working together with you to build a prosperous future.
