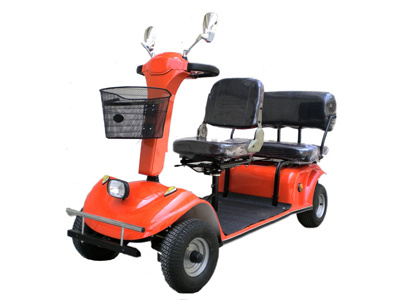

CE Electric Mobility Scooter (BTM-07B)

Specifications

Product Description

Specifications
Color: All kinds
Over dimension: 1980mm*730mm*1050mm
Front wheel: 396mm/16"
Rear wheel: 396mm/16"
Net weight: 130kg
Motor: 800W
Controller: CURTIS (import from USA)
Max weight capacity: 300kg
Max forward speed: 13km/h
Climbing capacity: 8degree
Ground clearance: 180mm
Maximum obstacle: 50mm
Range: 40km (subject to the load, terrain conditions)
Drive system: Rear wheel drive, sealed alterable transaxle
Braking system: Electric and electromagnetic
Min turning radius: 1950mm
Battery size: 12V/70AH*2
Weight of battery: 10kg
Charger: 5A/ (automatic three-mode selections)
Charge time: 4-5/h
Qfy/20'FCL: 24PCS
Qfy/40'HQ: 48PCS

Features:
Innovative design, foldable, compact and trouble-free operation.
Anti-tip, anti turn-on-side when turning, advanced transaxle, electromagnetic braking system, and controlling system.
Reliable range has a range of 25-30km after charging.
360 degree swivel chair and foldable armrest make you become more comfortable.
Standard: CE
