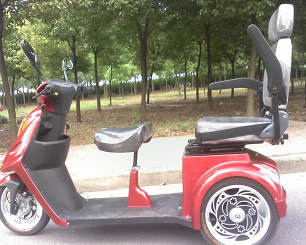

CE Electric Mobility Scooter (BTM-05B)

Specifications

Product Description

Model: BTM-05B
Color: All kinds of color
Specification:
Rear wheel size: 406*64mm/16*2.5"
Front wheel size: 406*64mm/16*2.5"
Battery: 12V/28AH*2(12V/38AH)
Charger: 48V 3.0AMP (automatic three-mode selections)
Controller: DYNAMIC (import from New Zealand)
Motor: 500W/800W
Weight capacity: 150KG
Net weight (with batteries): 85KG
Overall dimension: 1880*680*1200mm/74.02*26.77*47.24"
Overall carton dimension: 1900*700*900mm/74.80*27.56*35.43"
Ground Clearance: 110/4.33"
Maximum climbing capability: 12 degree
Turning radius (min): 1200mm/47.24"
Max forward speed: 22km/h (adjustable)
Max backward speed: 6km/h (adjustable)
Qfy/20'FCL: 18PCS
Qfy/40'HQ: 36PCS

Features:
Easy operation, fashionable design.
150kg user weight capacity.
Comfortable and deluxe seating.
Electric-magnetic braking system and automatic power off.
Electric transaxle drive with rear wheel drive provides optimum maneuverability.
Standard: CE
