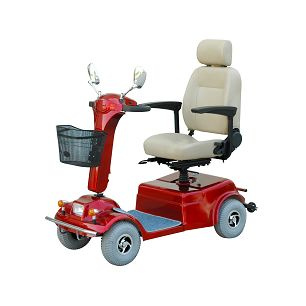

Deluxe 4-Wheel Electric &Mobility Scooter (BTM-04)

Specifications

Product Description

Model: BTM-04
Color: All kinds of color
Specification:
Weight capacity: 140kg
Rear wheel size: 260*85mm/10.23*3.35"
Front wheel size: 260*85mm/10.23*3.35"
Battery: 12V38AH× 2
Charger: 110VAC~230VAC/24VDC-4A
Charger time: 8-14H
Controller: CURTIS (import from USA)
Motor: 400W
Net weight(with batteries): 98kg(contain 2 battery)
Battery Weight: 14kg*2
Overall dimension: 1360*620*1180mm/53.54*24.41*46.46"
Overall carton dimension: 1320*630*650mm/51.97*25.59*24.81"
Seating dimension: 510*560*330mm/20.08*22.05*12.99"
Ground Clearance: 120mm/4.72"
Distance between ground and seating: 605mm/23.82"
Distance between wheels: 454mm/17.87"
Climbing capability: 12 degree
Turning radius (min): 1300mm/51.18"
Max forward speed: 11km/h (adjustable)
Max backward speed: 4.8km/h (adjustable)
Range: 45km
Qfy/20'FCL: 39PCS
Qfy/40'HQ: 108PCS

Features:
Innovative design, foldable, compact and trouble-free operation.
Anti-tip, anti turn-on-side when turning, advanced transaxle, electromagnetic braking system, and controlling system.
Reliable range has a range of 25-30km after charging.
360 degree swivel chair and foldable armrest make you become more comfortable.
Efficient up to 70% of transaxle output, auto shift to sleeping condition to save energy when stay idle.

Standard: CE
