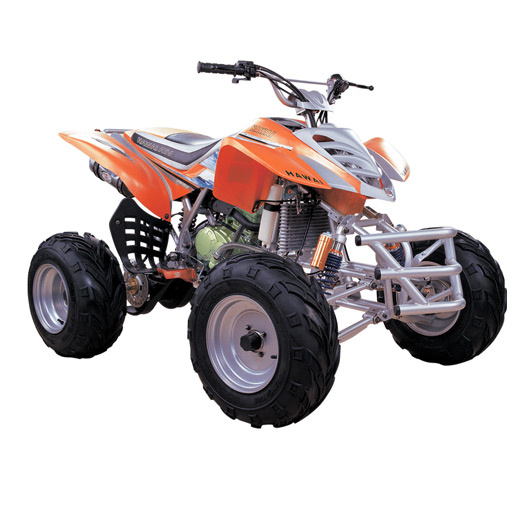

ATV (YX200ST-6A)

Specifications

Prod Model:	YX-200ST-6A

Product Description

Specification
Length*width*height: 1800*1120*1130 mm
Wheel base: 1150 mm
Engine type: Single cylinder; Water-cooling; Four strokes
Start mode: Electric
Power(kW/r/min): 10.3KW/7500r/min
Max torque(N. M/r/min): 15N. M/6000r/min
Max speed(km/h) ≥75
Mini ground clearance(mm): 120mm
Dry weight(Kg): 155kg
Transmission mode: Chain
Break type: Drum/disc
Battery: 12V 9Ah
Climbility ≥20 degree
Tank capacity: 4L
Front shock absorber: Integral ballonet absorber
Rear shock absorber: Inner ballonet absorber
Tyre F: 21*7-10 R: 20*10-10
Cylinder diameter*journey(mm): 63.5X62.2
Displacement(ml): 197
Shift gear: 4 F/with R, manual clutch
Seat height: 880 mm
Mini turning radium: 2650mm
Parking trig: Mechanic lock
Ignition mode: CDI
Loading capacity(kg): 150
Engine oil(L) 1
Gear oil: 800ml
Person: 1
Lubrication: Press splash
Compression ratio 9.2: 1
Packing dimension: 1470*860*880 mm
Conveyance:
20' GP / 20units
40' GP / 44 units
40' HQ / 66 units"
