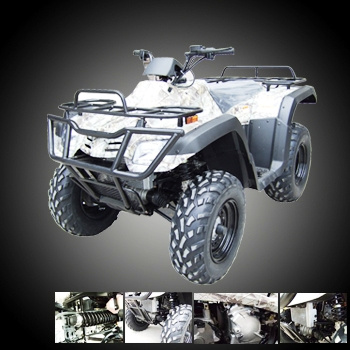

Home Zhejiang Eshine Industry & Trade Co. Ltd. 300cc 4wd ATV
Product Description
1. Dimension(LxWxH): 2150 mmx1200mmx1200mm2. Packing: 1950*1150*860MM
3. Loading: 12PCS/20"; 24PCS/40"; 36PCS/40"HQ
4. Wheelbase: 1235mm
5. Distance between front wheels: 860mm
7. Distance between rear wheels: 860mm
8. Ground clearance: 200mm
9. Seat height: 900mm
10. Dry weight: 300kgs
11. Gross Weight: 350kgs
12. Fuel: Gasolion Without plumbum Brand mark≥93#
13. Lube: (SAE 10W-40gas machine oil, API serve admissive SG grade)
14. Fuel tank: 13.0L
15. Load: 250Kg, Include the rider and the goods with the tool
16. Drive system: 4WD
17. Brake system front/rear: Disk/Disk
18. Transmission mode: Shaft
19. Engine
Transmission ratio: Max Transmission ratio 2.444
Min Transmission ratio 0829
Transmission ratio: High/Low/Reverse 1.609/2.188/-1.5
20. Underpan caster: 4.0
21. Trail: 17mm
22. Tire. Front tire: 25x8-12
Rear tire: 25x10-12
23. Tyre pressure: 250Kpa+(-)30KPa
24. Gearshift mode: Automatic with reverser gear
25. Battery: 12V-9Ah
26. Generator: 0.245kw/5000rpm
27. Starting system: Electric
28. Fuse: Main cable 30A, others 15Ax2.10Ax2
29. Lamps and lanterns:
Headlight: 12V 30/30Wx2
Taillight: 12V 5W
Turning light: 12V 5W
Neutral indictor light: LCD
Reverse indicator light: LCD
Go ahead gear indicator light: LCD
30. Engine Efficient Capacity: 284L
31. Cylinder Diaxjourney: 71mmx71mm
32. Compression Ratio: 10.5: 1
33. Max power: 15.3KW/7500R
34. Max torque: 23N. M/6000R
35. Spark plug(normal): DPR7EA-9(NGK)
36. Spark plug(winter): DPR6EA-9(NGK)
37. Valve clearance: 0.10mm
38. Spark clearance: 0.8-0.9mm
39. Engine racing rotate speed: 1400+(-)100rpm
40. Cooling system: Air-cooled+ liquid-cooled
Our company Zhejiang Eshine Industry & Trade Co. Ltd. is located in the major light industrial base of Yongkang, Zhejiang Province, Engaged in the manufacturing of entertainment vehicles and leasure products, our main series now include pocket bike, chopper, surfing scooters, gasoline scooters.
We are offering products with high quality, stylish designs and reasonable prices, we are now supplying a range of companies in the USA, Australia, Europe and Southeast Asia with items that best fit the requirements of their individual markets. Having built up a wide-ranging product development capability, we can also do custom design and produce new series according to buyers' ideas and drawings.
We know very well that the high quality, reasionable price and good after sales service are the keys to the business transaction, those what we are offering to you.
Constantly seeking new cooperative.
We are offering products with high quality, stylish designs and reasonable prices, we are now supplying a range of companies in the USA, Australia, Europe and Southeast Asia with items that best fit the requirements of their individual markets. Having built up a wide-ranging product development capability, we can also do custom design and produce new series according to buyers' ideas and drawings.
We know very well that the high quality, reasionable price and good after sales service are the keys to the business transaction, those what we are offering to you.
Constantly seeking new cooperative.
