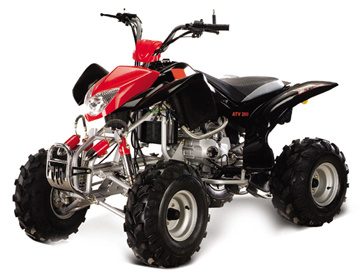

200CC ATV (AV200ST-D)

Specifications

Prod Model:	AV200ST-D

Product Description

ENGINE TYPE:SINGLE CYLINDER,4 STROKE,FORCED WATER-COOLED )
ENGINE DISPLACEMENT(ml):193
BORE X STROKE(mm):63 x 62
MAXIMUM POWER(kw/r/min):11/8000
MAXIMUM TORQUE(N.m./r/min):13/6500
START MODE:ELECTRICAL
TRANSMISSION MODE:CHAIN
BRAKE MODE:DRUM/DISC
BRAKE DISTANCE(m/30km):7
SHIFT SPEED TPYE:FIVE,WITH REVERSE GEAR
CLUTCH MODE:MANUAL
External condition:
LENGTH X WIDTH X HEIGHT(mm):1590x870x990
MINIMUM TURNING RADIUS(mm):3000
CLIMBING DEGREE:30
LAMP:HEAD LAMP
SEAT HEIGHT(mm):670
MINIMUM GROUND CLEARANCE(mm):120
TOP SPEED(Km/h):70
TYRE DIMENSION(FRONT/REAR):AT19*7-8/AT18*9.5-8
COVER MATERIAL:PP
COLOR:RED/BLUE/GREEN/BLACK/YELLOW
Packing:
Carton dimensions:1480 x 850 x 780mm
N.W.:130KG
G.W.:155KG
Conveyance:
Qty/20' GP:30pcs
Qty/40' GP:66pcs
Qty/40' HQ:66pcs
