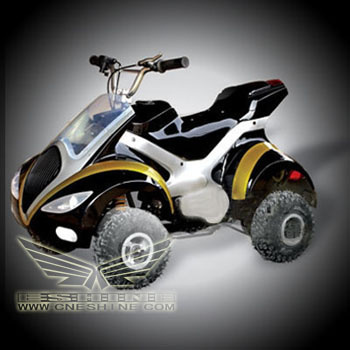

Home Zhejiang Eshine Industry & Trade Co. Ltd. ATV (YX-AV802A)
Specifications
Product Description
1) Max Speed: 30km/h2) Climbing ability: 15''
3) Max loading: 80kg
4) Distance between axles: 690mm
5) Distance between front wheels: 420mm
6) Distance between rear wheels: 510mm
7) Ground clearance: 110mm
8) Specification of front wheel: 145/70-6
9) Specification of rear wheel: 145/70-6
10) Engine: 50cc, single-cylinder, 4 stroke
11) Displacement: 49ml
12) Rated power and rotation speed: 2.3kw/8500rpm.approx
13) Max torque and Rotate Speed: 2.7N.m/6500r/min
14) Compression ratio: 7:1
15) Transmission: fully auto clutch and 4 speed semi auto
16) Starting system: electric start and kick-back start
17) Cooling system: air cooling
18) Oil tank: 3.4L
19) Brake: front and rear disc brake
20) Carton: 1150 x 760 x 700mm
21) N.W.: 63kg; G.W.: 71kg
22) Quantity: 48pcs/20ft; 102pcs/40ft; 136pcs/40HQ
