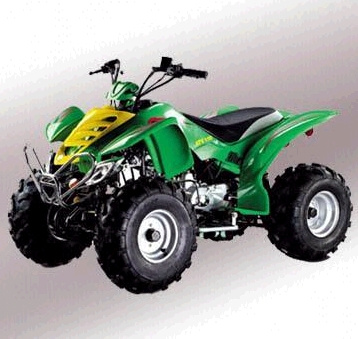

ATV (TP-GA007)

Specifications

Prod Model:	ATV ( TP-GA007 )

Product Description

Specifications:
1) Max. Speed: 60km/h
2) Max. Load: 150kg (330lbs)
3) Engine type: 150cc, single cylinder, 4-stroke, air cooled
4) Start method: Electric start
5) Ignition: CDI
6) Wheelbase: 1, 110mm (43. 70" )
7) Distance between wheels:
A) Front: 625mm (24. 61" )
B) Rear: 720mm (28. 35" )
8) Tires:
A) Front tire: AT19x7-8
B) Rear tire: AT18x9. 5
9) Transmission mode: Chain
10) Brake (front/rear): Drum/disc brake
11) Overall dimensions: 1630x910x1030mm (64. 17 x 35. 83 x 44. 55" )

Packing:
Carton dimensions: 1485x850x760mm (58. 46 x 33. 46 x 29. 92" )
N. W.: 155kg (342lbs. )

Conveyance:
Qty/20' FCL: 30pcs
Qty/40' HQ: 63pcs
