Specifications

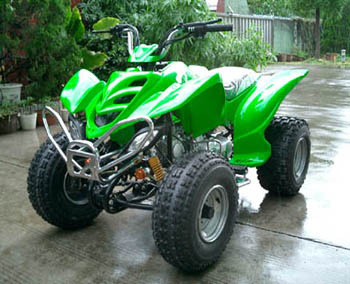

| Prod Model: | ATV (TP-ATV023) |
|---|
Product Description
1) Engine type: 4-strokes, air cooled2) Transmission system: Shaft drive
3) Bore x stroke(mm): 52. 4 x 49. 5
4) Piston displacement(ml): 107
5) Maximum power(kw/r/min): 5. 5/8000
6) Maximum torque: 6. 5/5750
7) Starting system: Electric starter
8) Transmission: 4-speed, semi automatic
9) Seat height: 670mm
10) Min turning radius: 2400mm
11) Ground clearance: 100mm
12) Brake(front/rear): Drum/drum
13) Tire(front): 19 x 7-8/29PSI
14) Tire(rear): 18 x 9. 5-8/2. 9PSI
15) Ignition type: C. D. I
16) Fuel tank capability: 7. 8L
17) Front suspension: Leading arm
18) Rear suspension: Mono shock swing arm
19) Parking brake: Mechanical lock
20) Battery: 12V-9Ah
21) Loading: 40" =66 boxes
22) Max load capacity: 95kg
23) Engine oil capacity: 0. 95L
24) Gear oil capacity: 0. 12L
25) Dry weight: 130kg
26) Rider capacity: 1 person
27) Rear track: 710mm
28) Front track: 725mm
29) Wheel base: 1040mm
30) Overall height: 950mm
31) Lubrication: Auto
32) Overall length: 1540mm
33) Overall width: 860mm
34) Compression ratio: 9. 1: 1
35) Cylinder arrangement: Single cylinder
