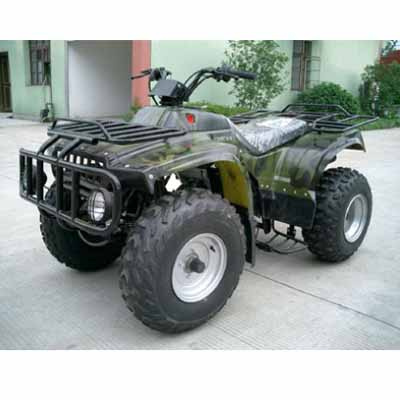

ATV (TP-ATV009)

Specifications

Prod Model:	ATV (TP-ATV009)

Product Description

Dimensions: 1880 *1050 * 1080mm
Engine type: 4-stroke, air cooled, single-cylinder (shaft drive)
Transmission: 5 speeds, semi-automatic
Model: 253Fmm
Compression ratio: 9.2: 1
Displacement: 233.9ml
Top speed: 80km/h
Max power: 13kW/8500r/min max Torque: 15N.m/7000r/min
Ground clearance: 170mm
Starting system: electric
Brake (front/rear): drum/drum
Tire (front): 21 * 8-10
Tire (rear): 22 *10-10
Ignition type: C.D.I.
Lubrication: pressuring splash
Battery: 12V-14Ah
Engine oil: 15W40-SE
Engine oil capacity: 1.6L
Net weight: 170kg
Rider capacity: 1 person
Fuel tank capacity (L): 12
Front suspension: independent
Rear suspension: swing arm
Parking brake: mechanical lock
Colors: red, yellow, blue, green, black and camouflage
Packing:
Gross weight: 250kg Net weight: 220kg
Carton size: 1950 * 950 * 900mm(Iron and Seven-layer carton)
Conveyance:12pcs/20"24pcs/40"36pcs/40HQ
