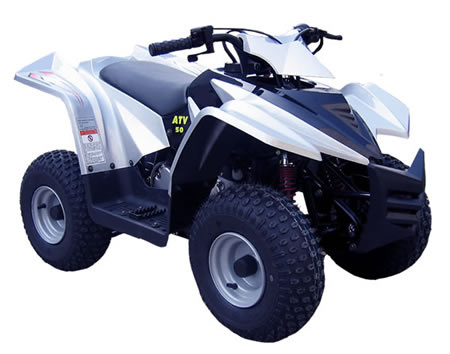

Home China Qianjiang Group ATV (Mini ATV)
Specifications
Product Description
Measurement and WeightL 1160mm
W 650mm
H 727mm
Wheel base 628mm
Dry mass 70kg
Ground clearance 90mm
Engine
Engine style Single cylinder, 2 stroke, air-cooled
Engine type 1E40QPA
Bore * stoke 40.0mm * 33.0mm
Compression ratio 6.6:1
Max power 1.80kw/7500r/min
Starting mode Hand pull starter
Clutch Dry, centrifugal
Transmission
Driving system Chain drive
Front tire 145/70-6tubeless
Rear tire 145/70-6 tubeless
Electrical
Battery 6V
Chassis
Rear brake Hand operation, single disc
Max speed >=35km/h
Economic fuel consumption 1.9L/100km
Max load 100kg
Capacity
Fuel tank(including res) 3.5L
