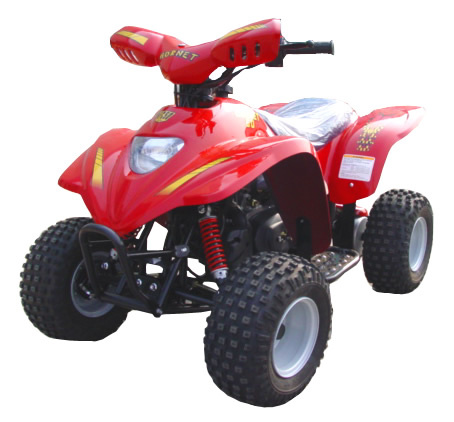

Home China Qianjiang Group ATV (ATV50)
Specifications
Product Description
Measurement and WeightL 1370mm
W 890mm
H 915mm
Wheel base 685mm
Dry mass 103kg
Ground clearance 110mm
Engine
Engine style Single cylinder, 2stroke, air-cooled
Engine type QJ1E40QMB
Bore * stoke 40. 0mm * 39. 0mm
Compression ratio 7. 2: 1
Max power 3. 92kw/7500r/min
Ignition CDI
Starting mode lectric and kick starter
Clutch Dry, centrifugal
Transmission
Driving system Chain drive
Front tire 16X8-7 tubeless
Rear tire 16X8-7 tubeless
Electrical
Battery 12V
Chassis
Front brake Hand operation, double drum
Rear brake Hand operation, single drum/disc
Max speed >=50km/h
Economic fuel consumption 1. 9L/100km
Max load 150kg
Capacity
Fuel tank(including res) 6. 5L
