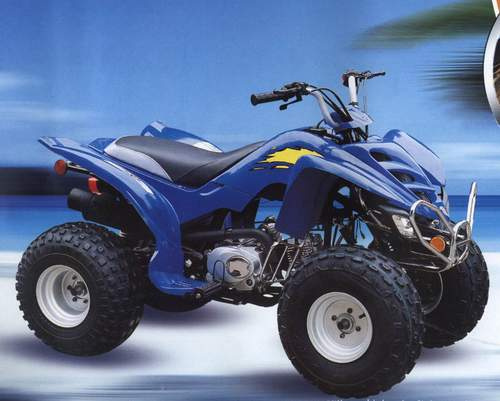

ATV (JL90)

Specifications

Prod Model:	JL90

Product Description

Engine Type: Single Cylinder, Air cooled, 4-Stroke
Transmission System: Shaft Drive
Bore*Stroke(mm): 47*49.5
Displacement(mm): 86
Max Power(Kw/r/min): 4/7500-8000
Max Torque: 5.6/5600-6000
Starting system: Electric
Transmission : Semi-automatic
Lubrication: Pressing Splash
Engine Oil(L): 0.95
Gear Oil(L): 0.12
Seat height(mm): 670
Min Turning Radius(mm): 2400
Ground Clearance(mm): 100
Wheel Base(mm): 1040
Brake(Front/Rear): Drum/Drum
Front Tyre: 19×7-8/2.9 Psi
Rear Tyre: 18×9.5-8/2.9 Psi
Ignition Type: CDI
Fuel Tank(L): 7.8
Front Suspension: Leading arm
Rear Suspension: Swing Arm
Battery: 12V-9Ah
Parking brake: Mechanical Lock
Pay load(Kg): 95
Net weight(Kg): 130
Rider capacity: 1 Person
Overall Length(mm): 1540
Overall Width(mm): 860
Overall Height(mm): 950
