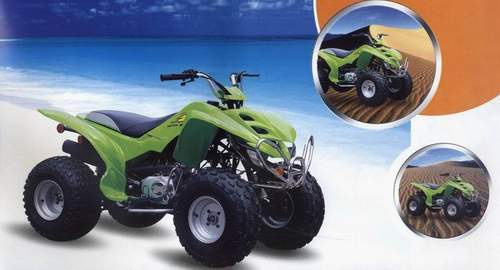

ATV (JL110/JL125ST-C)

Specifications

Prod Model:	JL110/125

Product Description

Engine TypeL Single Cylinder, Air cooled, 4-Stroke
Transmission System: Shaft Drive
Bore*Stroke(mm): 52.4*49.5
Displacement(mm): 107
Max Power(Kw/r/min): 5.5/8000
Max Torque: 6.5/5750
Starting system: Electric
Transmission: 4-Speed, Semi-automatic
Lubrication: Auto
Engine Oil(L): 0.95
Gear Oil(L): 0.12
Seat height(mm): 670
Min Turning Radius(mm): 2400
Ground Clearance(mm): 100
Wheel Base(mm): 1040
Brake(Front/Rear): Drum/Drum
Front Tyre: 19×7-8/2.9 Psi
Rear Tyre: 18×9.5-8/2.9 Psi
Ignition Type: CDI
Fuel Tank(L): 7.8
Front Suspension: Leading arm
Rear Suspension: Monoshock Swing Arm
Battery: 12V-9Ah
Parking brake: Mechanical Lock
Pay load(Kg): 95
Net weight(Kg): 130
Rider capacity: 1 Person
Overall Length(mm): 1540
Overall Width(mm): 860
Overall Height(mm): 950
