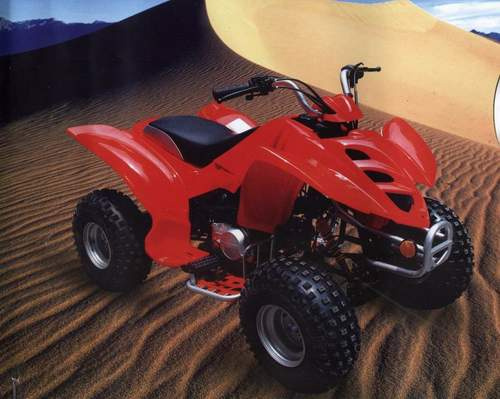

ATV (JL50ATV-A)

Specifications

Prod Model:	JL50

Product Description

Engine type: Single Cylinder, Air-cooled, 4-stroke, Stepless
Transmission System: Shaft drive
Bore*Stroke(mm): 39*41.4
Displacement(mm): 49
Max power(Kw/r/min): 2.8/7500-8500
Ma torque: 3.0/5500-6500
Starting system: Electric
Transmission: Stepless
Lubrication: Auto
Engine Oil(L): 0.65
Gear Oil(L)None
Seat height(mm): 620
Min Turning Radius(mm): 2400
Ground Clearance(mm): 80
Wheel Base(mm): 1030
Brake(Front/Rear): Drum/Drum
Front Tyre: 16×7-8
Rear Tyre: 16×7-8
Ignition Type: CDI
Fuel Tank(L): 7.8
Front Suspension: None
Rear Suspension: None
Battery: 12V-9Ah
Parking brake: Mechanical Lock
Pay load(Kg): 30
Net weight(Kg): 110
Rider capacity: 1 Person
Overall Length(mm) 1540
Overall Width(mm) 860
Overall Height(mm) 900
