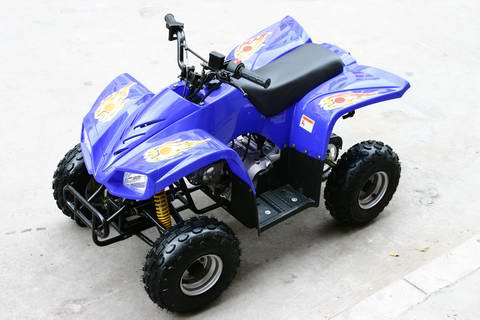

Home Wuyi Zhenglong Sports Utensils Co., Ltd. ATV (ATV-016)
Specifications
| Prod Model: | ATV-016 |
|---|
Product Description
1) Engine type: 70cc single cylinder, air-cooled, four-stroke, circle gear shiftor automatic
2) Max. power: 3.7kW / 8,000rpm
3) Max. torque: 4.5N.m / 6,000rpm
4) Max. speed: >40kph
5) Wheelbase: 880mm
6) Ground clearance: 100mm
7) Displacement: 71.8ml
8) Brake (front / rear): N/A, disc
9) Transmission system: chain
10) Starting mode: CDI electric start
11) Front suspension: double wishbone
12) Rear suspension: single damper
13) Battery: 12V / 6.5A
14) Transmission: chain
15) Max. load: 75kg
16) Overall dimensions: 1,300 x 725 x 800mm
17) Net weight: 76kg
Outer packing:
Carton dimensions: 1,300 x 750 x 650mm
Conveyance:
Qty/40' HQ: 108pcs
