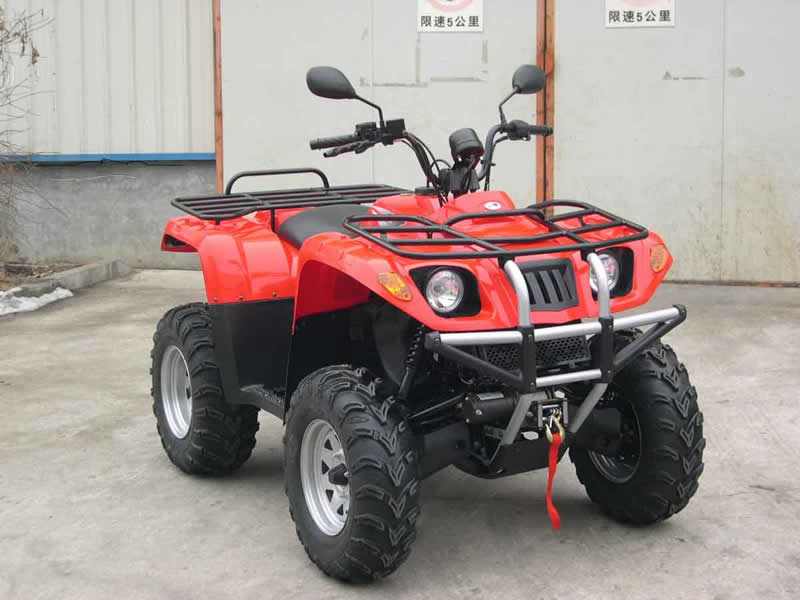

Home Heilan Industry Co., Ltd. ATV 300CC 4WD
| Prod Model: | 300ST-4 |
|---|
Product Description
1. DimentionsOverall length 2070mm
Overall width 1180mm
Overall height 1280mm
2. Wheelbase 1265mm
3. Track
Front wheel 980mm
Rear wheel 950mm
4. Ground clearance 260mm
5. Unloading mass 330kg
6. Loading capacity 150 kg
7. Turning radius 3m
8. Maximum speed 70km/h
9. Economical consumption of fuel 5l/100 km
10. Engine model t171mn
11. Engine type 1 cylinder 4 stroke water cooled
12. Cylinder capacity 264ml
13. Compression ratio 10. 5: 1
14. Rated power 14.7kw(6500r/min)
15. Maximum torque 21n. M(6000 r/min)
16. Fuel gb484 90# fuel
17. Lubricant brand for crankcase gb11121 sae15w/40
18. Lubricant brand for transmission gb13895 85w/40
19. Starter system electric
20. Spark d8rea
21. Fuel tank 12l
22. Battery 12v/11ah
23. Tires
Front 25x8-12
Rear 25x10-12
We are speciallized in developing, designing and manufacturing ATV, SCOOTER, POCKET BIKE, DIRT BIKE, WATER SCOOTER, GO KART, SERIES, at present we have new development in inflatable. Our products are exported to Europe, America and Southeast Asia, etc. Due to our new models, reasonable price and superior service. We have already established long-term and friendly cooporataion relations with many customers.
