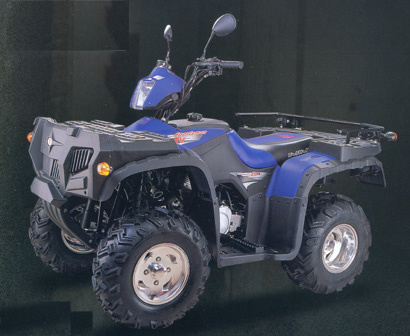

Home Heilan Industry Co., Ltd. ATV (250S-5B EEC)
| Prod Model: | 250S-5B |
|---|
Product Description
250S-5B EEC APPROVALLength x width x height(mm): 1920X1030X1200
Wheel base(mm): 1160
Engine type: Single cylinder, air cool, 4-stroke
Start mode: Electric/manual
Power( kw/r/mmin): 10kw/7500rpm
Max torque(N. M/r/min): 15N. M/6000r/min
Max speed(km/h): >60
Dry weight(kg): 240
Transmission mode: Shaft
Brake type: Disc/disc
Tank capacity(L): 11
Front hanging: Arm-swing
Rear hanging: Integral
Tyre: Front: 23x7-10/22x7-10
Rear: 22x10-10/22x10-10
Cylinder diameter x journey(mm): 71x58
Displacement(ml): 229.6
Shift gear: 5gears, automatic clutch
Mini turning radium(mm): 2900
Parking trig: Mechanical lock
Ignition mode: CDI
Loading capacity(kg): 165
Person: 2
Compression proportion: 8.7: 1
Qty: 12units/20, 24units/40GP, 36units/40HQ
We are speciallized in developing, designing and manufacturing ATV, SCOOTER, POCKET BIKE, DIRT BIKE, WATER SCOOTER, GO KART, SERIES, at present we have new development in inflatable. Our products are exported to Europe, America and Southeast Asia, etc. Due to our new models, reasonable price and superior service. We have already established long-term and friendly cooporataion relations with many customers.
