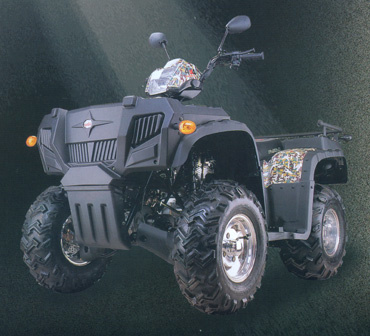

Home Heilan Industry Co., Ltd. ATV(250S-10 4WD)
| Prod Model: | 250S-10 4WD |
|---|
Product Description
250S-10 (4WD)Length x width x height(mm): 1900X1150X1220
Wheel base(mm): 1200
Engine type: single cylinder, liquid cool,4-stroke
Start mode: electric/manual
Power( kw/r/mmin): 10kw/6500rpm
Max torque(N.m/r/min): 15N.m/5500r/min
Max speed(km/h): >75
Dry weight(kg): 270
Transmission mode: shaft
Brake type: disc/disc
Tank capacity(L): 12
Front hanging: arm-swing
Rear hanging: integral
Tyre: front: 22x8-10
Rear: 22x11-10
Cylinder diameter x journey(mm): 71x58
Displacement(ml): 229.6
Shift gear: 5gears with one reverse,one neutral-gear. automatic clutch
Mini turning radium(mm): 3100
Driving mode: 4WD
Ignition mode: CDI
Loading capacity(kg): 170
Person: 1
Compression proportion: 8.7:1
Qty: 10units/20,22units/40GP, 33units/40HQ
