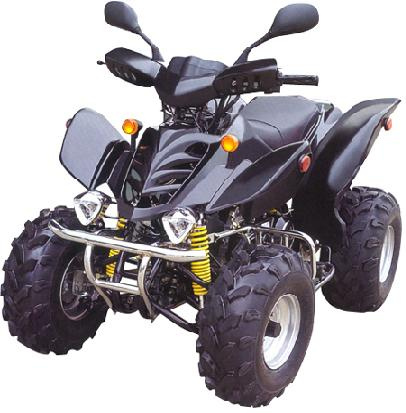

ATV (150-Y)

Specifications

Prod Model:	ATV (150-Y)

Product Description

ATV (150-Y)
1) Engine type: 4-stroke, air-cooled
2) Max. Speed: 75km/h
3) Max. Load capacity: 120kg
4) Cylinder arrangement: Single cylinder
5) Transmission system: Chain drive
6) Bore x stroke: 52. 4 x 49. 5mm
7) Displacement: 150cc
8) Compression ratio: 9. 1: 1
9) Drive: Chain drive
10) Max. Power: 5. 25/7, 500kW/rpm
11) Max. Torque: 8. 0/7, 500N. M/rpm
12) Starter system: Electric starter
13) Lubrication: Auto
14) Transmission: Automatic/MANUAL
15) Min. Turning radius: 2, 400mm
16) Brake: Drum/disc
17) Front tire: 19 x 7-8/2. 9psi
18) Rear tire: 18 x 9. 5-8/2. 9psi
19) Ignition type: CDI
20) Fuel tank capacity: 7. 8L
21) Engine oil capacity: 0. 95L
22) Parking brake: Mechanical lock
23) Battery: 12V, 9Ah
24) Ground clearance: 100mm
25) Dimensions: 1, 540 x 860 x 950mm

Outer packing:
Carton dimensions: 1, 465 x 850 x 760mm
N. W.: 135kg
G. W.: 150kg

Conveyance:
Qty/20' FCL: 30pcs
Qty/40' HQ: 66pcs
