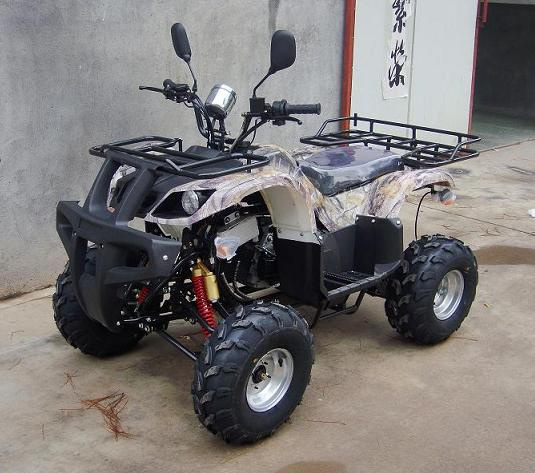

ATV 250CC (XW-A28)

Specifications

Prod Model:	XW-A28

Product Description

1) Dimensions (L x W x H): 1, 620 x 1, 020 x 1, 120mm
2) Wheelbase: 1, 220mm
3) Seat height: 850mm
4) Ground clearance: 280mm
5) Rated loading: 150kg
6) Max. Speed: 75km/h,
7) Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 10 - 10
8) Break type (F/R): Front/disk
9) Fuel tank capacity: 3.5L
10) Power source: 12V, 9Ah
11) Engine type: 250CC, single cylinder, air cooled, 4-stroke
12) Cylinder size: 63.5 x 62.2mm
13) Compression proportion: 10.5: 1
14) Displacement: 249ml
15) Max Power: 11.0kW/7, 500r/min,
16) Max. Torque: 14.2N. M/6, 000r/min
17) Transmission mode: Chain
18) Engine oil: 0.9L
19) Min. Turning radius: 2, 750mm
20) Parking trig: Mechanical lock
21) Ignition mode: CDI
22) Transmission: 4 gears with one reverse gear, manual clutch
23) Max. Number of riders: 1
24) Lubrication: Press splash
25) Start mode: Electric

Outer packing:
Carton dimensions: 1480 x 840 x 846mm

Conveyance:
Qty/20 GP: 29 units
Qty/40 GP: 64 units
Qty/40 HQ: 66 units
