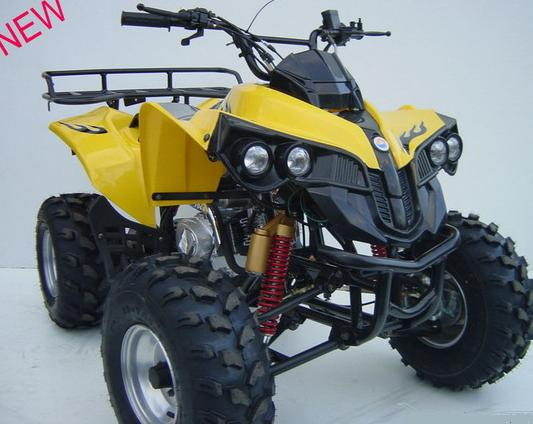

110CC ATV / Quad (XW-A55)

Specifications

Prod Model:	XW-A55

Product Description

Feature:
1) Dimensions (L x W x H): 1590 x 1020 x 1010mm
2) Seat height: 750mm
3) Rated loading: 85kg
4) Max. Speed: 45-55km/h
5)Front/rear Tire: 16*8-7/16*8-7
6) Break type (F/R): Drum/disc
7) Fuel tank capacity: 3L
8) Power source: 12V, 4Ah
9) Min. Turning radius: 1500mm
10) Engine type: 110CC, single cylinder, air-cooling, 4-stroke
11) Cylinder size: 52.4 x 49.5mm
12) Compression proportion: 9: 6: 1
13) Displacement: 107ml
14) Max Power: 5.8kW/9000h/min,
15) Max. Torque: 7.0N. M/ 7000h/min
16) Transmission mode: Chain
17) Ignition mode: CDI
18) Lubrication: Press splash
19) Start mode: Electric

Outer packing:
Carton dimensions: 1300 x 770 x 750mm

Conveyance:
Qty/20' GP: 39 units
Qty/40' GP: 81 units
Qty/40' HQ: 108 units.
