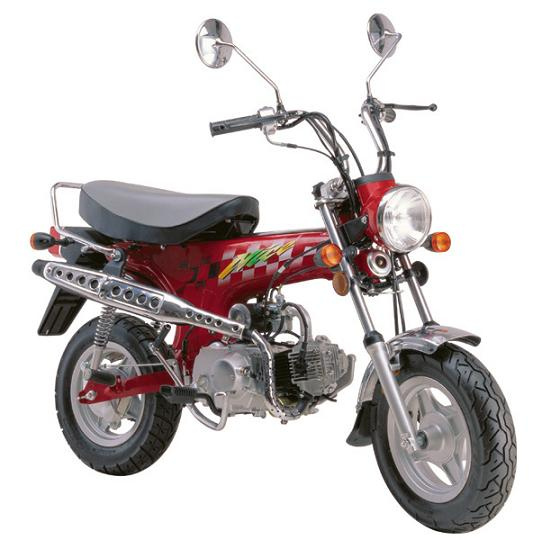

Home Chongqing Sajao Mechanical&Electrical Co., Ltd. 70cc Dirt Bike (SJ70PY-1)
Specifications
| Prod Model: | SJ70PY-1 |
|---|
Product Description
Feature: 70cc. 4 stroke, kick start, front&rear drum brake, al-alloy wheel, chain drive, manual clutch, with speedometer and round lights, shock absorber, rear arm rest.Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch method: Manual
Ignition method: C. D. I.
Start method: Kick start
Cylinder: Single
Transmission: Chain
Displacement(ml): 72
Bore*stroke(mm): 47*41.4
Compression ratio: 8.8: 1
Rated power(kw/r/min): 3.4/7500± 500
Maximum torque(N. M/r/min): 4.5/6000± 500
Lubrication: Splash
Gear: 4
Dimensions(L*W*H)(mm): 1440*380*750
Wheel base(mm): 1060
Seat height(mm): 740
Min. Turning radius(mm): 1500
Min. Ground clearance(mm): 100
Rider capacity: 1
Brake: Front&rear drum
Front wheel: 3.50-10
Rear wheel: 3.50-10±
Fuel tank capacity(L): 2.5
Engine oil capacity(ml): 800
Climbing capacity: ≥15
Max. Load(kg): 75
Max. Speed(kw/h): 50
Packing size(L*W*H)(mm): 1440*380*750
Net weight(kg): 70
Gross weight(kg): 80
