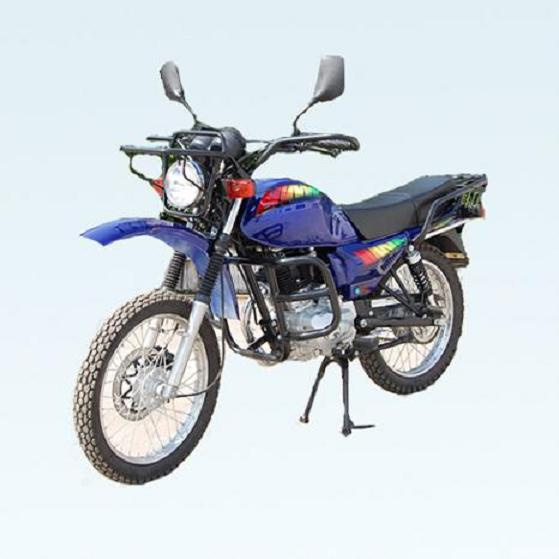

125cc Motorcycle (SJ125GY-5)

Specifications

Prod Model:	SJ125GY-5

Product Description

Feature: 125cc. 4 stroke, electric&kick start, manual clutch, front disc&rear drum brake, spoke wheel, shock basorber, round light, front carrier.
Specifications:

Engine type: Single cylinder, air cooling, 4 stroke
Clutch method: Manual clutch
Ignition method: C. D. I.
Start method: Electric&kick start
Cylinder: Single
Transmission: Chain
Displacement(ml): 124
Bore*stroke(mm): 56.5*49.5
Compression ratio: 9.2: 1
Rated power(kw/r/min): 7.2/8500± 500
Maximum torque(N. M/r/min): 8.5/7000± 500
Lubrication: Splash
Gear: 5
Dimensions(L*W*H)(mm): 2050*930*1115
Wheel base(mm): 1290
Seat height(mm): 790
Min. Turning radius(mm): 2100
Min. Ground clearance(mm): 200
Rider capacity: 2
Brake: Front disc&rear drum brake
Front wheel: 2.75-18
Rear wheel: 3.00-18
Fuel tank capacity(L): 7
Engine oil capacity(ml): 800
Climbing capacity: ≥15
Max. Load(kg): 150
Max. Speed(kw/h): 85
Battery: 12V6.5Ah
Packing size(L*W*H)(mm): 1470*410*860
Net weight(kg): 114
Gross weight(kg): 134
