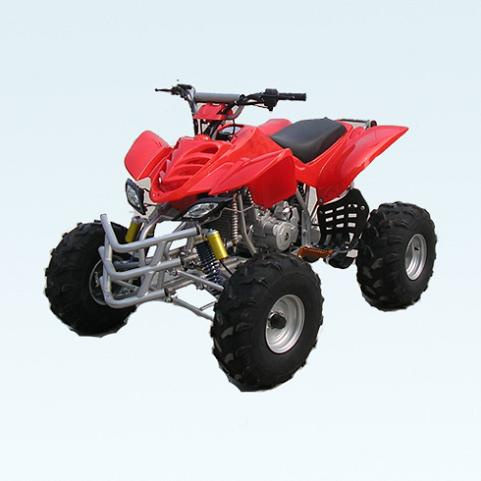

250cc ATV (SJ250ST-5)

Specifications

Prod Model:	SJ250ST-5

Product Description

Feature: 250cc. 4 stroke, single cylinder, air cooling, manual clutch, acyclic gear, front&rear disc brake, electric start, inner reverse gear, chain drive, dual rocking arm, attached piggy bag front shock, adjustable absorber R. R., al-alloy muffler, hoopy fork, al-alloy rear bridge.

Specifications:
Engine type: Single cylinder, water cooling, 4 stroke
Clutch: Manual wet multi-plate
Ignition method: C. D. I.
Start method: Electric
Cylinder: Single
Transmission: Chain
Displacement(ml): 250
Bore*stroke(mm): 67*65
Compression ratio: 9.2: 1
Rated power(kw/r/min): 12/7000± 500
Maximum torque(N. M/r/min): 16/6000± 500
Lubrication: Splash
Gear: 4 forward gear with reverse gear
Dimensions(L*W*H)(mm): 1800*1120*1130
Wheel base(mm): 1150
Seat height(mm): 770
Min. Turning radius(mm): 2650
Min. Ground clearance(mm): 140
Rider capacity: 2
Brake: Front&rear disc
Front wheel: 23*7-10
Rear wheel: 22*10-10
Fuel tank capacity(L): 4
Engine oil capacity(ml): 900
Climbing capacity: ≥30
Max. Load(kg): 150
Max. Speed(kw/h): 55
Battery: 12V9Ah
Packing size(L*W*H)(mm): 1480*1080*860
Net weight(kg): 155
Gross weight(kg): 180
