Specifications
Prod Model: |
QW-ATV-01 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tyre Size: |
6 Inch |
Brake Type: |
Drum Brake |
Maximum Speed: |
50-75 km/h |
Fuel: |
Gas / Diesel |
Certification: |
CE |
Transmission System: |
Chain Drive |
Engine Type: |
4 Stroke |
Transmission Type: |
Automatic |
Structure: |
off Road |
Displacement: |
70CC |
Product Description

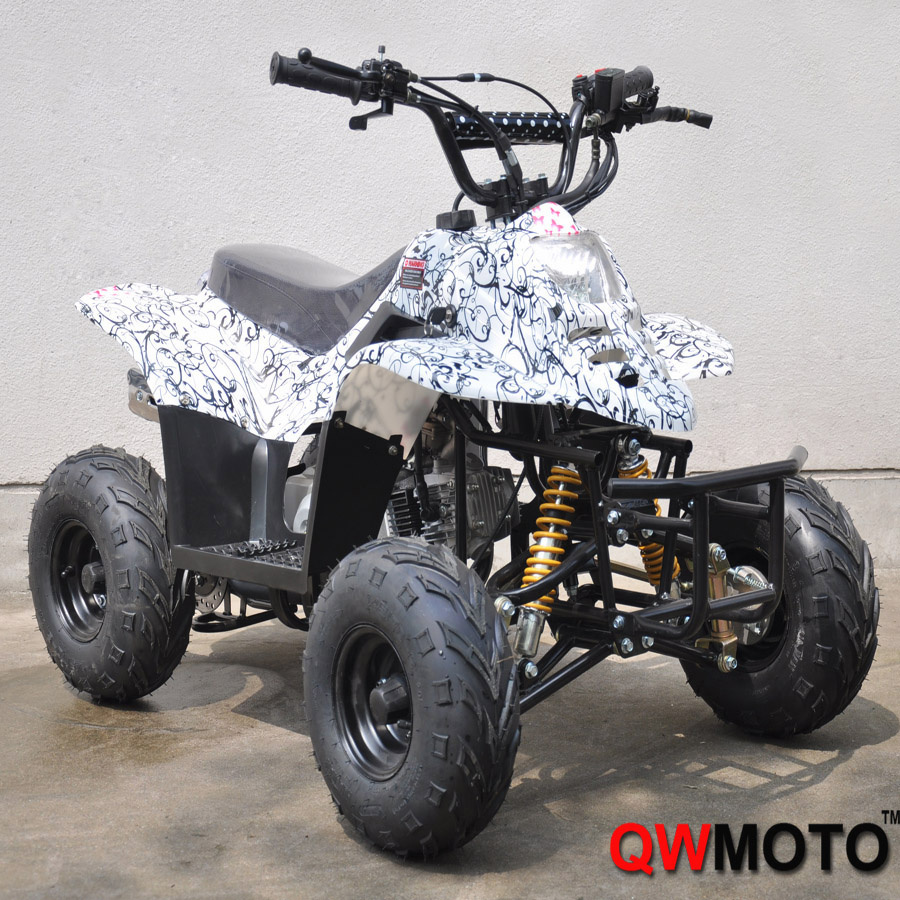

70CC ATV /QUAD BIKE /70CC QUAD /MINI ATV for kids
Model No: QWATV-01
Engine: 50CC/70CC/90CC/110CC ATV, Single cylinder, 4 stroke, air cooled
Displacement: 49.5ml/72ml/86ml/107ml
Bore * stroke: 39x41.4mm/47x41.1mm/47x49.5mm/52.4x49.5mm
Compression ratio: 9.0: 1/8.8: 1/8.5: 1/9.0: 1
Ignition: CDI
Transmission: Chain
Start: Electric
Clutch: ATV with Automatic Clutch
Gearbox: Full auto, 1+1 gears or 3+1 gears
Final drive: Chain 420
Frame: Steel
Swing arm: Steel
Suspension Front: Dual arm spring shocks
Suspension Rear: Spring shock
Front Tire: 145/70-6
Rear Tire: 145/70-6
Front Brake: Drum brake
Rear Brake: Hydraulic disc brake
Fuel Capacity: 2.31L
Seat Height: 64CM
Color Choices: Black, red, blue, cameo green etc.
Products Size: 118*67*80 cm
Packing Size: 115*72*59cm
Packing Materials: Carton / metal frame / bubble bag
20FCL: 63PCS
40HQ: 127 PCS
N. W: 72KG
G. W: 80KG.
