Specifications
Prod Model: |
QW-ATV-02C |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
4 Stroke |
Max Speed: |
>50km/h |
Displacement: |
51-125CC |
Maximum Loading Capacity: |
≥120kg |
Certification: |
CE |
Fuel Tank Capacity: |
<5L |
Folded: |
Unfolded |
Product Description

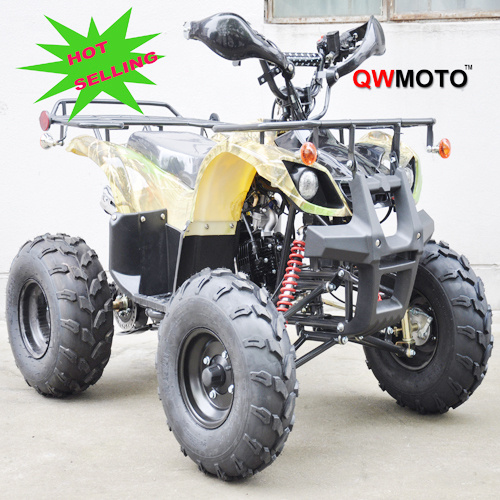

125cc off road Mini ATV CE
Engine: 125cc, Single cylinder, 4 stroke, air cooled engine
Gear: Automatic, 1+1 gears or 3+1 gears
Throttle Control: Thumb throttle (screw restrictable to limit max throttle)
Starting Method: Electric Start
Front Suspension: Dual A arm spring shocks
Rear Suspension: Large rear shock
Final drive: Chain 420
Frame: Steel
Rim: Steel
Exhaust pipe: Steel
Swing Arm: Steel
Maximum Speed: 75km/hr+ (Depends upon road conditions & rider weight)
Front Brakes: Drum Brakes
Rear Brakes: Drilled Hydraulic Disc Brake
Maximum Load: 180kg
Front Tire: 19/7.00-8
Rear Tire: 18/9.50-8
Fuel Capacity: 5.8L
Fuel: Straight Unleaded Petrol
Color Choices: Black, red, orange etc
Products Size: 148*88*96cm
Packing Size: 132*77*65cm
Seat Height: 68cm
Gross: 135kg
Net: 105kg
Packing Materials: Carton / metal frame / bubble bag
20ft Container: 36 PCS
40HQ: 108 PCS
