Specifications
Prod Model: |
QW-ATV-02D |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tyre Size: |
8inch |
Starting System: |
Kick System |
Certification: |
CE |
Engine: |
4 Stroke |
Displacement: |
51-125CC |
Condition: |
New |
Fuel: |
Gas / Diesel |
Cylinder Quantity: |
1 |
Product Description

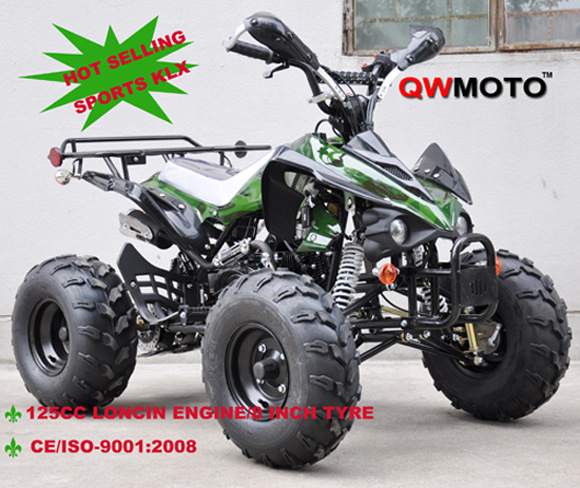

Model No.: QW-ATV-02D
Engine: Chongqing 125cc Air-cooled 4 Stroke, Single Cylinder
Starting Method Electric
Ignition Mode: CDI
Fuel Tank Capacity: 3L
Fuel: Straight Unleaded Petrol
Transmission: Semi Auto, 3 Forward and 1 Reverse Gear
With Neutral
Drive System: Chain
Throttle Control: Thumb throttle (screw restrictable to limit max throttle)
Suspension Front: Dual A arm spring shocks
Rear: Large rear shock
Maximum Speed: 65km/hr+
Front Brakes: Dual Drum Brake System
Rear Brakes: Drilled disc hydraulics (controlled by right foot brake)
Maximum Load: 100kg
Wheel Size Front + Rear: 16x8.0-7"(both knobbed for all terrain use)
Rider Capacity: 1 person
Dimensions (L x W x H) BOX: 1320 x 770 x 650 (mm)
BIKE: 1340 x 1020 x 980 (mm)
Seat Height: 720mm
Weight Gross: 100kg Net: 90kg
Conveyance Qty:
20"GP: 36pcs, 40"HQ: 105pcs
Colors available: Red/black/green/blue/yellow etc...
