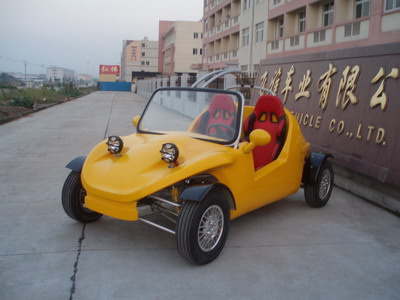

650cc 800cc EPA Go Kart (JW-RCK003)

Specifications

Prod Model:	JW-RCK003

Product Description

ENGINE
Type: 3-cylinders, 4-Stroke, Liquid-cooled
BoreXStroke: 68mmx72mm
Corrected compression ratio: 9.4: 1
Max Power: 29.5kW/5, 500+50rpmin+5%
Maximum torque: 44/2700~3300Nm/r/min
Transmission: manual clutch, 4 shift/Reverse
Ignition: CDI
Starting: Electric
Displacement: 800cc
Engine capacity: 796CC
Drive Train: shaft drive
Lubrication: Force & Splash
Spark plug: T4196J
Fuel brand: RQ93 (unleaded)
Highest speed: 120km/h (74.8miles/h)

CHASSIS
Suspension-front: Independent Dual A-Arm
Suspension-Rear: Independent Longitudinal Control Arm
Rear brake: Hydraulic disc, right foot control
Front brake: Hydraulic disc, right foot control
Front tire: 98KPa
Rear tire: 98KPa
Front tire: 175/70 R13 82H(special tryes)
Rear tire: 175/70 R13 82H(special tryes)

DIMENSIONS
LXX2920X1580X1230mm
Seat height: 450mm
Packing size: 2950X1150X1100mm(20container), 2950x1150x870mm(40HQ)
Wheelbase: 2045mm
Ground clearance: 190mm
Front track: 1380mm
Rear track: 1380mm
Fuel tank: 9L
Engine oil: 2900ml
Dry weight: 430kg
Gross weight: 480kg
Load: 350kg
Climbing: 30 degree
Loading Quantity: 8pcs/20FCL 24pcs/40HQ
