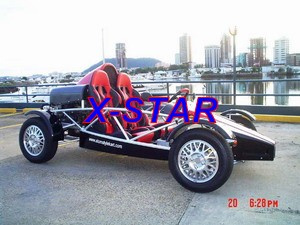

Racing Go Kart (250cc/650cc/850cc)

Specifications

Prod Model:	JW-RCK001

Product Description

1)Type: 2-Bore, 4-Stroke, Liquid-cooled
2)Bore x Stroke: 76mmx71mm
3)Displacement: 644 cc
4)Compression ratio: 8.4: 1
5)Carburetor: BJH101E or CSH101E
6)Max Power: 15kw/5300rpm
7)Maximum Torque: 44/2700~3300Nm/r/min
8)Starting: -Electric
9)Ignition: C. D. I
10)Lubrication: Force & Splash
11)Transmission: Manual clutch, 4 shift/Reverse
12)Spark Plug: -F6T or F6TC
13)Plug gap: 0.7-0.1mm
14)Fuel type: RQ93 (unleaded)
15)Lubricate oil: SAE-15W/30
16)Fuel tank: 28.0L
17)Engine oil: 2900ml
18)Coolant: 4000ml
19)Starting: <5s
20)Climbing: 30degree
21)Battery: 12V36Ah
22)Head Light: 12V 150W/Both
23)Tail Light: 12V 82W/Both
24)Fuse: 30A
25)Brake Track: < 7m @ 20miles/h
26)Top speed: 58 miles/h (or limited as customers require)
27)Front, Rear brake: Hydraulic disc, right foot control
28)Front Suspension: Independent Dual A-Arm
29)Rear Suspension: Independent Longitudinal Control Arm
30)Final Drive: Shaft driven
31)Tyre size: 175/70 R13 82H(front and rear) special tyres
N. W: 400kg
G. W: 450kg
Outer packing:
Steel frame with carton
Carton dimensions: 2, 850 x 1, 150 x 880mm
Conveyance:
Qty/20FCL: 8PCS
Qty/40HQ: 24PCS
