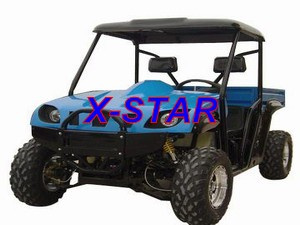

650cc/800cc Utility Vehicle (JW-UV001)

Specifications

Prod Model:	JW-UV001

Product Description

650cc EPA certificate with hydraulic lift, winch
Type: 2-Bore, 4-Stroke, Liquid-cooled
Bore x Stroke: 76mm x 71mm
Displacement: 646cc
Compression ratio: 8.4: 1
Carburetor: BJH101E or CSH101E
Max Power: 20.6kw/5300rpm
Maximum Torque: 44/2700~3300Nm/r/min
Starting: -Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Manual clutch, 4 shift/Reverse
Spark Plug: -F6T or F6TC
Fuel type: RQ93 (unleaded)
Lubricate oil: SAE-15W/30
Fuel tank: 28.0L
Engine oil: 2900ml
Coolant: 4000ml
Starting: <5s
Climbing: 30degree
Battery: 12V36Ah
Head Light: 12V 150W/Both
Tail Light: 12V 82W/Both
Fuse: 30A
Brake Track: < 7m @ 20miles/h
Top speed: 80km/h (four wheels drive)
Front, Rear brake: Hydraulic disc, right foot control
Front tire: 25 x 8-10
Rear tire: 25 x 10-12
Front Suspension: Independent Dual A-Arm
Rear Suspension: Independent Dual A-Arm
Final Drive: Shaft drive
N. W: 420kg
G. W: 450kg
