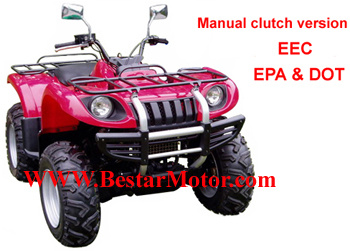

650CC 4 X 4 EEC ATV (DF-650)

Specifications

Prod Model:	DF-650

Product Description

Engine Type: Dual-cylinder, Four-stroke, Water-cooling
Actual Displacement: 644ml
Transmission mode: Shaft drive, 4x4
Ignition: CDI
Starting mode: Electric
Standard power output: 20.0KW
Max torque: 45N. M
Fuel capacity: 18 L (4.5 U. S gal)
Max speed: 75 km/h
Clutch mode: Manual
Gearshift mode: 4 speeds with reverse,
Controlled by hand or Pedal (optional)
Suspension: Independent-double A-arm, differential gear inner
Brake system: Front double hydraulic disc rear single hydraulic disc
Battery: 36Ah / 12V Sealed Maintenance-Free, Lead Acid Batteries
Loading capacity: 220Kg (front rack 40 Kg, rear rack 80 Kg and driver) 485 lbs(front rack 88 lbs, rear rack 176 lbs and driver)
Towing capacity: 500 Kg (1102 lbs)
Meter: Digital indicator Fuel gauge, Neutral indicator etc.
Speedometer/Odometer: Metric system/British system available
Front tire size: AT25 X 8-12
Rear tire size: AT25 X 10-12
Stainless steel exhaust pipe
N. W.: 340 Kg
G. W.: 420 Kg
Packing size (L X W X H): 217X118X110cm
FCL quantity: 10PCS/20'GP, 20PCS/40'GP, 20PCS/40'HC
Color available: Red, Blue, Green, Black ect.
Option(not free): AMT engine, Alloy rim, Winch, Trailer, Trailer hitch, Snowplow, Camouflage color, front windshield
