Specifications
Prod Model: |
500ATV |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brake Type: |
Disc Brake |
Fuel: |
Gas / Diesel |
Certification: |
EEC |
Transmission System: |
Shaft Drive |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Transmission Type: |
Automatic |
Displacement: |
>400CC |
Product Description

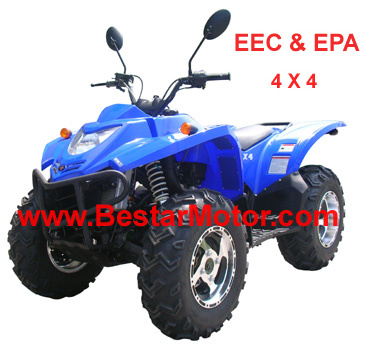

4WD 500CC Sports ATV Quad Bike with EEC (500ATV)
ENGINE
Type: 500CC, water-cooled, 4-stroke, 1-cylinder
Actual displacement: 471CC
Bore X Stroke: 84.5mm X 84mm
Compression Ratio: 9.3: 1
Carburetion: PD33G
Ignition: CDI
Starting Mode: Electric
Transmission: L-H-N-R-P
Drive Train: Axle, Electronic switch between 4X4 and 4X2
CHASSIS
Front Suspension: Independent double swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Ventilated Hydraulic disc
Tires/Front: AT25 X 8-12 radial
Tires/Rear: AT25 X 10-12 radial
DIMENSIONS
Product Size: 1978mm X 1063mm X 1095mm
Seat Height: 840mm
Wheelbase: 1235mm
Ground Clearance: 220mm
Fuel Capacity: 13.5L
Dry Weight: 395kg
Gross Weight: 361kg
Packing Size: 199*112*86cm
FCL Quantity: 10PCS/20'GP, 24PCS/40'GP, 36PCS/40'HC
Option (not free): Alloy rim.
