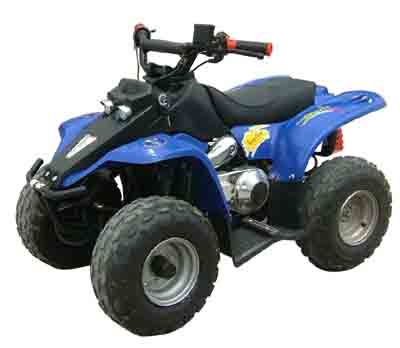

50CC ATV (RN-A50-F)

Specifications

Prod Model:	RN-A50-F

Product Description

Specifications:
1) Max Speed: >40km/h
2) Climbing ability: >15
3) Max loading: 80kg
4) Distance between axles: 690mm
5) Distance between front wheels: 420mm
6) Distance between rear wheels: 510mm
7) Ground clearance: 110mm
8) Specification of front wheel: 145/70-6
9) Specification of rear wheel: 145/70-6
10) Engine: 50CC, single-cylinder, 4 stroke
11) Displacement: 49ml
12) Rated power and rotation speed: 2.3kw/8500rpm. Approx
13) Max torque and Rotate Speed: 2.7N. M/6500r/min
14) Compression ratio: 7: 1
15) Transmission: Fully auto clutch and 4 speed semi auto
16) Starting system: Electric start and kick-back start
17) Cooling system: Air cooling
18) Oil tank: 3.4L
19) Brake: Rear disc brake

Packing:
Dimensions: 1150 x 680 x 640mm
N. W.: 69kg
G. W.: 84kg
Conveyance:
Qty/20' FCL: 51
Qty/40' FCL: 102
Qty/40' FCL (HQ): 136
