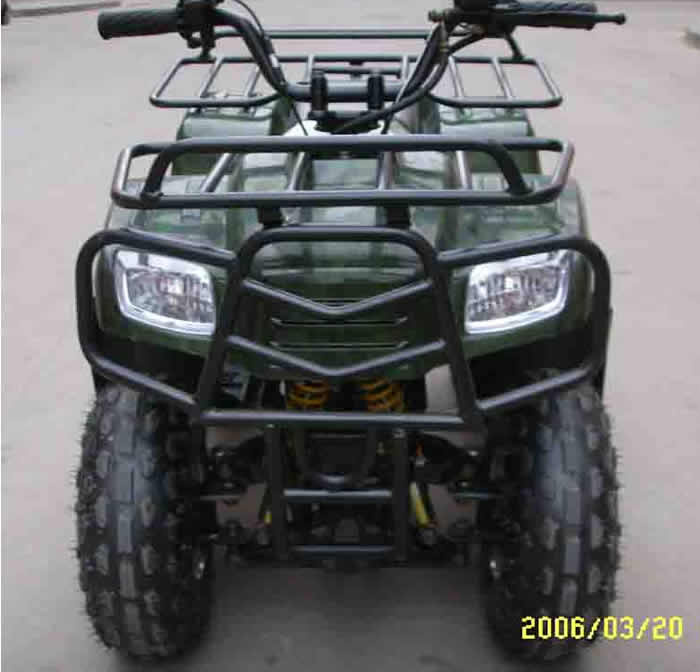

50CC ATV (RN-A50-C)

Specifications

Prod Model:	RN-A50-C

Product Description

Features:

1) Product size: 1230 x 710 x 830mm

2) Seat height: 560mm

3) Engine: 50cc, 4-stroke, air-cooled, single cylinder

4) Starting: Electric start

5) Max. Power: 2. 3kW /7, 000rpm

6) Max. Torque: 3. 0N. M /5, 500~6, 500rpm

7) Compression ratio: 7. 3: 1

8) Tank: 2L

9) Drive system: Chain

10) Transmission: Auto

11) Wheel size: 145/70-6(F), 145/70-6(R)

12) Wheel base: 750mm

13) Ground clearance: 80mm

14) Brake (front/rear): Disk brake (R)

15) Max. Speed: 40km/h

16) Max. Payload: 75kg

17) N. W.: 79kg

18) Color: Red, blue, green, yellow

19) Optional equipment: Remote shut off control, pull shut off

20) Battery: 12V 5Ah

21) Climbing angle: <17 degrees

Packing dimensions: 1160 x 730 x 660mm

Conveyance:

Qty/20' FCL: 48pcs

Qty/40' FCL: 96pcs

Qty/40' HQ: 128pcs
