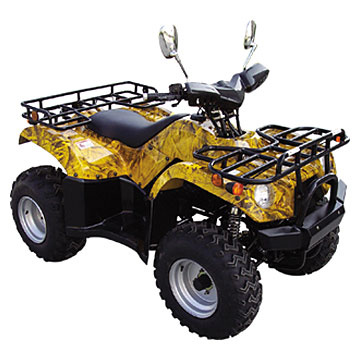

180CC ATV (RN-A180A)

Specifications

Prod Model:	RN-A180A

Product Description

Feature:
1) Body size (mm): 1, 880 x 1, 070 x 1, 100
2) Axle span (mm): 1, 150
3) Wheel span (mm):
A) Fr: 735
B) Re: 810
4) Max. Speed (km/h): 75
5) Fuel tank volume: 5. 5L
6) Gasoline brand: 90# leadless gasoline
7) Brake device:
A) Fr: Disc brake
B) Re: Disc brake
8) Tire size:
A) Fr: 23 x 7. 00 - 10
B) Re: 22 x 10 - 10
9) Engine type: Single cylinder, 4-stroke, air cooling
10) Transmission system: Gear transmission, with reverse, four speed, automatic clutch
11) Displacement: 175CC
12) Compression ratio: 9. 2: 1
13) Igniting way: C. D. I
14) Max. Torque: 10. 0/5, 500 N. M (r/min)
15) Starting way: Electric start
16) Rated power: 7Kw/7, 500r/min

Outer packing:
Carton dimensions (mm): 1, 925 x 1, 130 x 860
N. W.: 200kg
G. W.: 240kg

Conveyance:
Qty/40' FCL: 36pcs
