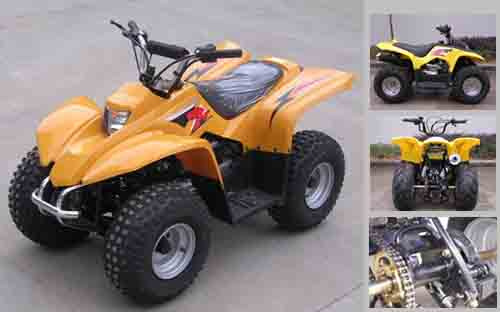

Home Zhejiang Runnan Vehicle Co., Ltd. 50CC ATV (RN-A50-D)
Specifications
| Prod Model: | RN-A50-D |
|---|
Product Description
Atv, quads, epa atv, 50cc atvSpecification:
1) Engine Type: 4-Strokes, Air Cooled, fully-automatic
2) Cylinder Arrangement: Single Cylinder
3) Transmission System: Chain Drive
4) Bore x Stroke (mm): 41X37
5) Piston Displacement (cc): 49CC
6) Compression Ratio: 7. 8: 1
7) Maximum Power (kw/r/min): 2. 4/5900
8) Maximum Torque (N. M. /rpm): 3. 9/5500
9) Starter System: Electric Stater
10) Lubrication: Oil Injection
11) Transmission: Single speed
12) LxWxH(mm): 1335x730x780
13) Wheel Base(mm): 828
14) Front Track (mm): 530
15) Rear Track (mm): 530
16) Seat Hight (mm): 542
17) Ground Clearance(mm): Max. 110
18) Rider Capacity: 1 person
19) Gross Weight(kg): 68
20) Dry Weight (kg): 90
21) Brake (Front/Rear): Drum/Disc
22) Tyre, Front: AT16x8-7
23) Tyre, Rear: AT16x8-7
24) Air pressure(front tyre)(kpa): 20
25) Air pressure(rear tyre)(kpa): 20
26) Ignition Type: C. D. I.
27) Fuel Tank Capacity(L): 3. 2
28) Engine Oil Capacity(L): 0. 6
29) Front Suspension: Double A-Arm
30) Rear Suspension: Single Swing
31) Parking Brake: Mechanical
32) Max. Speed(km/h): 23
