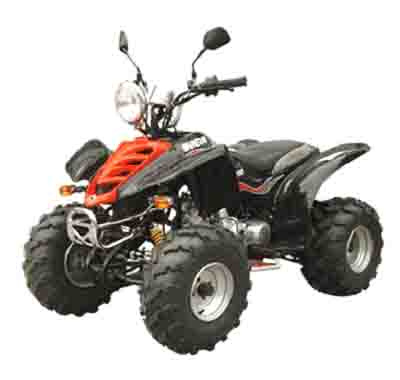

Home Zhejiang Runnan Vehicle Co., Ltd. 110CC ATV (RN-A110-A)
Specifications
| Prod Model: | RN-A110-A |
|---|
Product Description
Specifications:1) Engine: 110cc, single-cylinder, four stroke, air-cooled
2) Dimension (mm): 1540*880*1030
3) Drive type: Shaft drive
4) Front wheel /Rear wheel: 19 x*7-8/19 x*7-8
5) Seat high(mm): 693
6) Max. Speed (km/h): 75
7) Ground clearance (mm): 160
8) Max. Power (KW/r/min): 5. 0/7500
9) Displacement(mL): 107
10) Start-up system: Electri: / kick
11) Max. Torque (N. M/r/min): 7. 0/5500
12) Climb ability(degree): >30
13) Bore x stroke (mm): 52. 4 x 49. 5
14) Front: /rear brake: Drum/drum brake
15) G. W. /N. W.: 152kg/140kg
16) Carton Size: 1445*850*800mm(Packing: Hob inner with carton case)
17) Container: 66pcs/40ft HQ
