Home Wuyi Qiaowei Electrical Vehicle Co., Ltd. 50CC/70CC/90CC/110CC/125CC ATV Quad Bike (QW-ATV-02A)

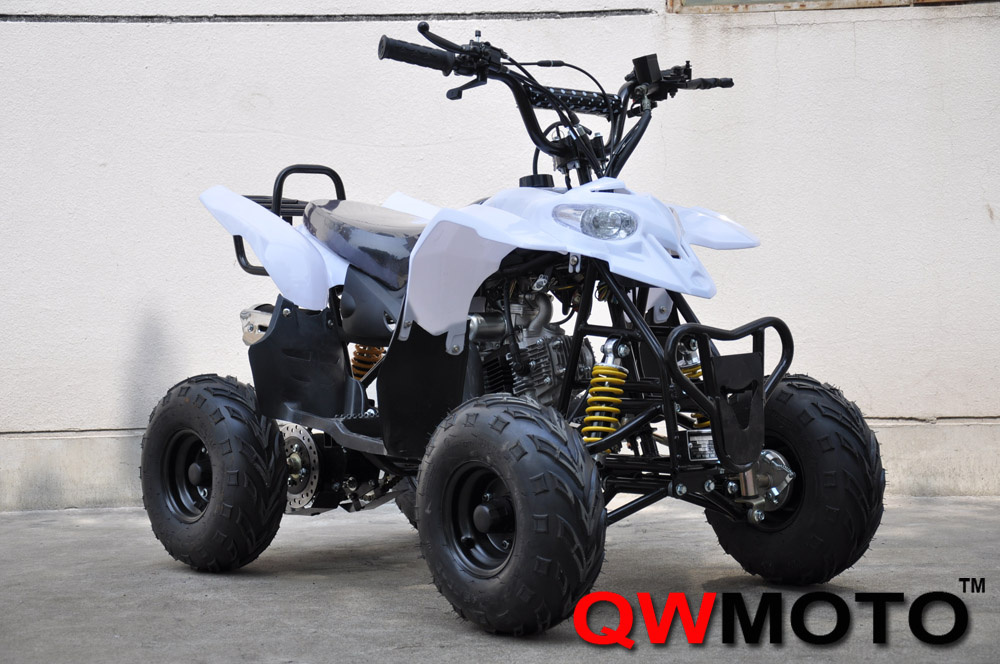

50CC/70CC/90CC/110CC/125CC ATV Quad Bike (QW-ATV-02A)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 10/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | QW-ATV-02A |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Speed: | <50 km/h |
| Fuel: | Gas / Diesel |
| Certification: | CE |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
| Transmission Type: | Semi-Automatic |
| Brake Type: | Front Drum Brakes& Rear Hydraulic Di |
| Structure: | off-Road |
| Displacement: | <125CC |
Product Description
50CC/70CC/90CC/110CC ATV Quad BikeATV quad, ATV, quad, 110CC ATV quad, 50CC ATV quad
Model No: QWATV-02F
Engine: 50CC/70CC/90CC/110CC/125CC, Single cylinder, 4 stroke, air cooled
Displacement: 49.5ml/72ml/86ml/107ml
Bore * stroke: 39x41.4mm/47x41.1mm/47x49.5mm/52.4x49.5mm
Compression ratio: 9.0: 1/8.8: 1/8.5: 1/9.0: 1
Ignition: CDI
Transmission: Chain
Start: Electric
Clutch: Automatic
Gearbox: Full auto, 1+1 gears or 3+1 gears
Final drive: Chain 420
Frame: Steel
Swing arm: Steel
Suspension Front: Dual arm spring shocks
Suspension Rear: Spring shock
Front Tire: 145/70-6
Rear Tire: 145/70-6
Front Brake: Drum brake
Rear Brake: Hydraulic disc brake
Fuel Capacity: 2.31L
Color Choices: Black, red, blue, cameo green etc.
Packing Size: 115*77*59cm
Packing Materials: Carton / metal frame / bubble bag
20FCL: 56PCS
40HQ: 120 PCS
N. W: 80KG
G. W: 88KG
