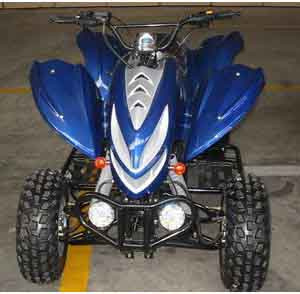

300cc Single Cylinder 4-Stroke, Air-Cooled ATV (ATV-031)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | ATV-031 |
|---|
Product Description
Name: ATVItem No.: ATV-031
Details: Type ATV-31 (300CC)
1£®Single cylinder 4-stroke, air-cooled
2¡£Displacement - (cc) 292
3¡£ Bore Stroke - (mm) 78x61.2
4¡£Compression 8.9: 1
5¡£Lubrication PRESS/ SPLASH
6¡£Ignition CDI
7¡£Starter Electric Start
8¡£Fueltank - (L) 7.5
9¡£Transmission 2WD Standard 5 forward speed and reverse outside
10¡£Final Transmission Shaft Drive
11¡£Length - (mm) 1900 Width - (mm) 1150 Height - (mm) 860
12¡£Seat Height - (mm) 830
13¡£Wheelbase - (mm) 1255
14¡£Clearance - (mm) 150
15¡£Dry Weight - (kg) 220
16¡£Max load (kg) 200
17¡£Suspension Front Double Swing Arm
18¡£Tyres Front 21¡Á9-10, 50kpa
19¡£Brakes Front Hydraulic disk brake
20¡£Suspension Rear Single arm
21¡£Tyres Rear 22x10-10, 50kpa
22¡£Brakes Rear Disk Brake with ABS
23¡£Max Speed (km/h) 85km/h
24¡£Climbing Ability 30¡ã
