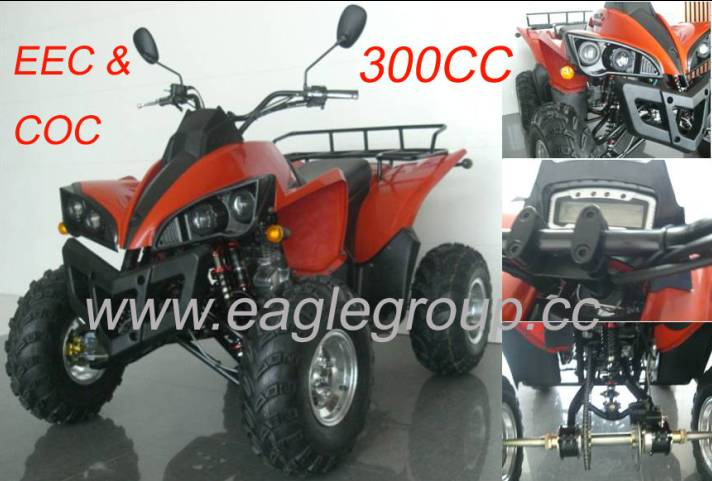

300cc EEC ATV / Quad (YG-ATV300E-A1)

Specifications

Prod Model:	YG-ATV300E-A1

Product Description

1) Dimensions (L x W x H): 1790 x 1230 x 1255mm
2) Wheelbase: 1250mm
3) Seat height: 880mm
4) Min. Ground clearance: 290mm
5) Rated loading: 150kg
6) Max. Speed: 95km/h
7) Tires:
A) Front wheels: 23 x 7 - 10
B) Rear wheels: 22 x 10 - 10
8) Break type (F/R): Disc/disc
9) Fuel tank capacity: 9.8L
10) Power source: 12V, 14Ah
11) Min. Turning radius: 3000mm
12) Engine type: 300CC, single cylinder, air-cooling, 4-stroke
13) Cylinder size: 78 x 61.2mm
14) Compression proportion: 8.9: 1
15) Displacement: 292ml
16) Max Power: 16.2kW/7, 500r/min,
17) Max. Torque: 20.0N. M/ 6000r/min
18) Transmission mode: Chain
19) Min. Climbing degree: 22 degree
20) Ignition mode: CDI
21) Transmission: 4 gears with one reverse gear, manual clutch
22) Lubrication: Press splash
23) Start mode: Electric

Outer packing:
Carton dimensions: 1775 x 1110 x 850mm

Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 26 units
Qty/40' HQ: 39 units
