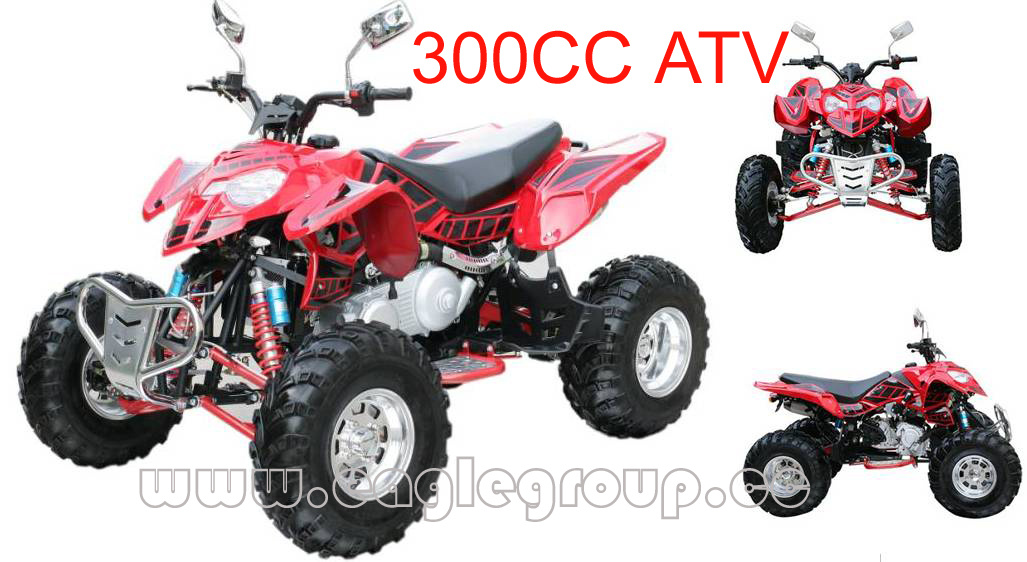

Specifications
Prod Model: |
YG-ATV300ST-1 |
Certification: |
CE |
Displacement: |
300CC |
Transmission Type: |
Semi-Automatic |
Structure: |
Two Side Doors |
Engine Type: |
4 Stroke |
Transmission System: |
Chain Drive |
Product Description
ENGINE TYPE: 4-stroke, 1-cylinder, water-cooled
Displacement: 286.7CC
Max power: 13/7000rpm
Max torque: 21/5500rpm
Starting: Electric
Ignition: C. D. I
Lubrication: Pressure and Splash
Compression Rate: 10.2: 1
Transmission: CVT with reverse inside
Final Drive: Chain
Front/rear Brake: Hydraulic disc/hydraulic disc
Max Speed: 80Km/h
Fuel Capacity(liter): 10L
Battery: 12V14Ah
Wheel Base: 1260mm
Front/rear Tire: 23*7-10/22*10-10
Mini ground Clearance: 180mm
Net/Gross weight: 220/245kgs
Capacity Weight 175kg
Product Size: 1870*1330*1770mm
Carton size: 1785*1155*880mm
Container: 38PCS/40'HQ
