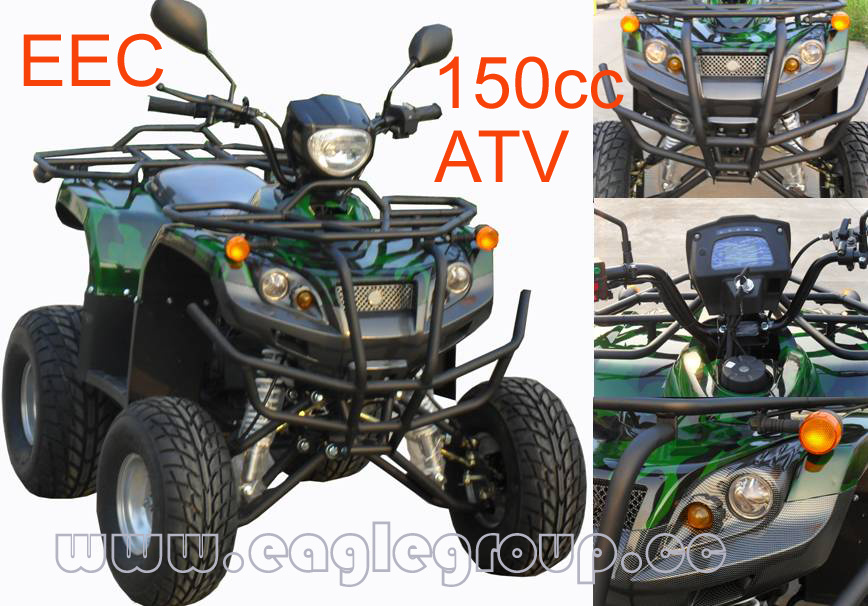

Home Eagle Industry and Trade Co., Ltd. 150CC EEC ATV/Quad (YG-ATV150E-A1)
| Prod Model: | YG-ATV150E-A1 |
|---|---|
| Certification: | EEC |
| Displacement: | 150CC |
| Transmission Type: | Semi-Automatic |
| Structure: | Two Side Doors |
| Engine Type: | 4 Stroke |
| Transmission System: | Chain Drive |
Product Description
Engine type: 1 Cylinder, 4 stroke AUTO, GY 6 engine displacement: 150 CCMax power: 6.0 kw/ 7500 rpm
Max torque: 8.3 Nm/6000 rpm
Cooling: Air cooled
Lubrication: Pressure and splash
Ignition: CDI
Starting: Electic start
Final drive: Chain drive
Transmission: C. V. T automatic With inside reverse, front suspension: Double A-arm
Rear suspension: Swing arm
Front brake: Dual sealed drums/right hand operation
Rear brake: Hydraulic disc / left hand operation parking: Front/rear wheel
Front tire: AT21*7-8
Rear tire: AT 20*9.5-8
L*W*H: 1660 * 1090 * 1060 mm
Seat height: 810 mm
Wheel base: 1090 mm
Turn radius: 3000 mm
Ground clearance: 120 mm
Dry weight: 150 kgs
Max speed: 64 km/ h
Tank capacity: 5.0 L
Reserve amount: 0.9 L
20 ft: 18 PCS
40HC: 63 PCS
Packing Size in CBU: 1490*840*800 mm
Eagle group was founded in 2001, still now we have 22 joint or cooperative enterprises. The head company is Eagle Industry And Trade Company Limited
Eagle group carry "industry diversification" into execution. The basic products are ATV, DIRT BIKE, SCOOTER, POCKET BIKE, GO KART, the new products are RACING PRODUCT, ALUMINIUM RADIATOR AND LIGHT. The integrated economy of Group is in the front rank of the industry in China and dedicate to technical innovations, establish the most complete database of the national industry. Most of the products get the international safe or environmental certification(CE, EPA, EEC, DOT, ECE). The abroad sales is booming and being exported to more than 50 countries or districts, has own distributors in more than 20 countries. Insist on that the quality is the root of the development for an enterprise, not only has strict manufacture and quality control system, but also offer better after-sales services for the products.
With the tenet of honesty, the direction of speciality. We offer good quality products at the competitive price and the effective service to satisfy our customers.
Eagle group carry "industry diversification" into execution. The basic products are ATV, DIRT BIKE, SCOOTER, POCKET BIKE, GO KART, the new products are RACING PRODUCT, ALUMINIUM RADIATOR AND LIGHT. The integrated economy of Group is in the front rank of the industry in China and dedicate to technical innovations, establish the most complete database of the national industry. Most of the products get the international safe or environmental certification(CE, EPA, EEC, DOT, ECE). The abroad sales is booming and being exported to more than 50 countries or districts, has own distributors in more than 20 countries. Insist on that the quality is the root of the development for an enterprise, not only has strict manufacture and quality control system, but also offer better after-sales services for the products.
With the tenet of honesty, the direction of speciality. We offer good quality products at the competitive price and the effective service to satisfy our customers.
