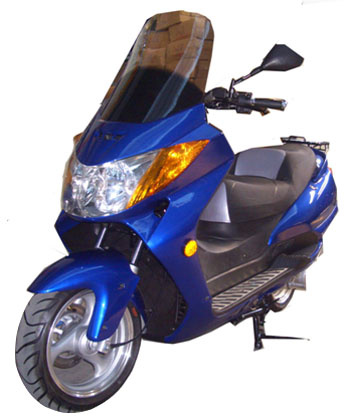

250cc Water Cooled EPA Scooter (TS250D-1)

Specifications

Prod Model:	TS250D-1

Product Description

1 Dimension (mm)(Length*Width*Height): 1990 x 750 x 1140mm
2 Engine Type: Single-cylinder, water-cooled, 4-stroke
3 Engine model: 170MM
4 Displacement(ml): 257
5 Power(kw/r/min): 12.5 / 6500
6 Maximum Torque(N. M. /r/min): 20/5500
7 BorexStroke: 70 x 66.8
8 Lubrication: Pressure / Splash
9 Starting: Electric/Kick
10 Max. Speed(km/h): 120
11 Transmission: Belt
12 Brake Type(Front/Rear): Disc/disc
13 Tyre size(Front / Rear): 4.00-12
14 Ignition mode: CDI
15 Wheel base(mm): 1510
16 Fuel tank capacity(L): 10.0L
17 Economical Fuel Consumption (l/100km): . 3.2L
18 Battery: 12V/9AH
19 Net weight(kgs): 133
20 Max Loading (kgs): 180
21 Min. Ground Clearance (mm): 140mm
22 Container(20') loading quantity: 18PCS
24 Container(40'GP or 40'HQ): 36PCS
