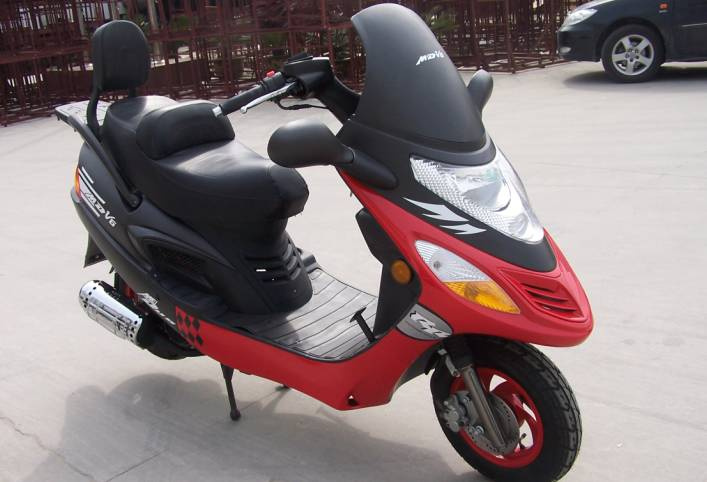

125cc EEC Scooter (TS125E-8)

Specifications

Prod Model:	TS125E-8

Product Description

Engine:
1) Engine model: YB152QMI
2) Engine style: Single cylinder, air-cooled, 4-stroke
3) Bore x stroke: 52.4 x 57.8mm
4) Ignition: CDI
5) Lubrication: Pressure / splash
6) Max. Power: 4.6kW / 6, 500rpm
7) Max. Torque: 7.5N. M / 5, 500rpm
8) Impression ratio: 9.2 0. ± 5: 1
9) Starting type: Electric / kick
10) Max. Speed: 80km/h
11) Oil consumption: Less than 367g/kWh
12) Max. Noise: 77dB
13) Clutch: Wet type, multi-plate

Scooter:
1) Dimensions: 1, 985 x 690 x 1, 155mm
2) Wheel base: 1, 380mm
3) Gross weight: 135kg
4) Dry weight: 116kg
5) Transmission type: Strap
6) Tire and rim (front / rear): 130/60-13 / 130/60-13
7) Brake style (front / rear): Disc / drum disc
8) Absorber style: Independent hanging
9) Displacement: 125ml
10) Oil tank capacity: 6 ± 0.5L
11) Climbing ability: More than 15°
12) Max. Load: 150kg
